Truck Ovens

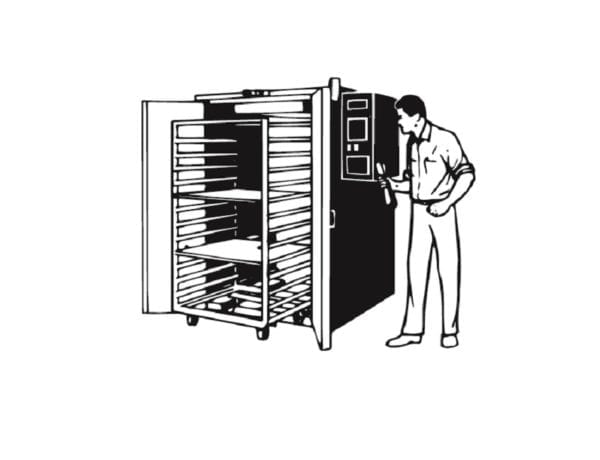

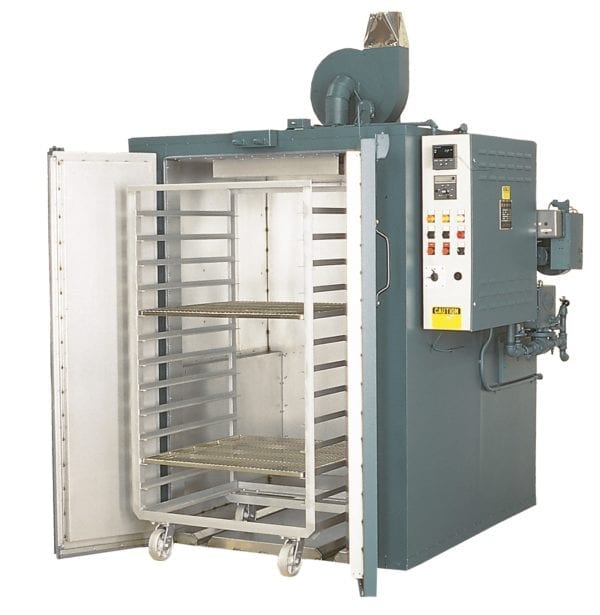

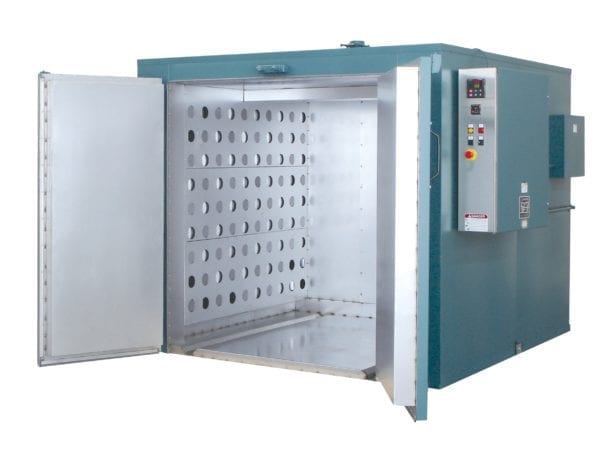

Hard working ovens designed for baking, drying, preheating or any other application. Complete with temperature controllers that offer the latest in heat-sensing technology and built-in floor level guide tracks that make truck loading easy.

Truck Ovens Model Specifications:

CAUTION:  Ovens processing combustible material are required by National Fire Protection Association 86 Standard for Ovens and Furnaces (NFPA 86) to have a fire suppression system.  If flammable solvents or vapors are present in an oven, OSHA requires conformance with NFPA 86 Class A Oven requirements.  A powered forced exhauster and other non-standard safety equipment must be added.  See Class A Oven Equipment for Solvent Processing resource page, reference our FAQs or contact us us for more information.

Model Workspace Outside Dimensions*(WxDxH) Max Temp Blower Heat Input Insulation Thickness Operating Characteristics† Approx Shipping Weight
Dimensions(WxDxH) VolumeCu Ft CFM HP ElectricKW GasBTU/HR Control Accuracy Temperature Uniformity Rise Time (Electric) Rise Time (Gas)
TA-550 36" x 36" x 60" 45 56" x 67" x 74" 550°F 1,000 ¾ 18 200,000 6" ± 0.3% ± 5°F 30 15 2,030 lbs
TB-550 48" x 48" x 60" 80 68" x 79" x 74" 550°F 1,200 1 24 200,000 6" ± 0.3% ± 5°F 30 15 2,400 lbs
TC-550 60" x 60" x 60" 125 80" x 91" x 74" 550°F 2,000 2 24 200,000 6" ± 0.3% ± 5°F 38 15 2,975 lbs
TAH-550 36" x 36" x 60" 45 56" x 67" x 74" 550°F 1,600 1 ½ 18 200,000 6" ± 0.3% ± 5°F 30 15 2,130 lbs
TBH-550 48" x 48" x 60" 80 68" x 79" x 74" 550°F 2,000 2 24 200,000 6" ± 0.3% ± 5°F 30 15 2,550 lbs

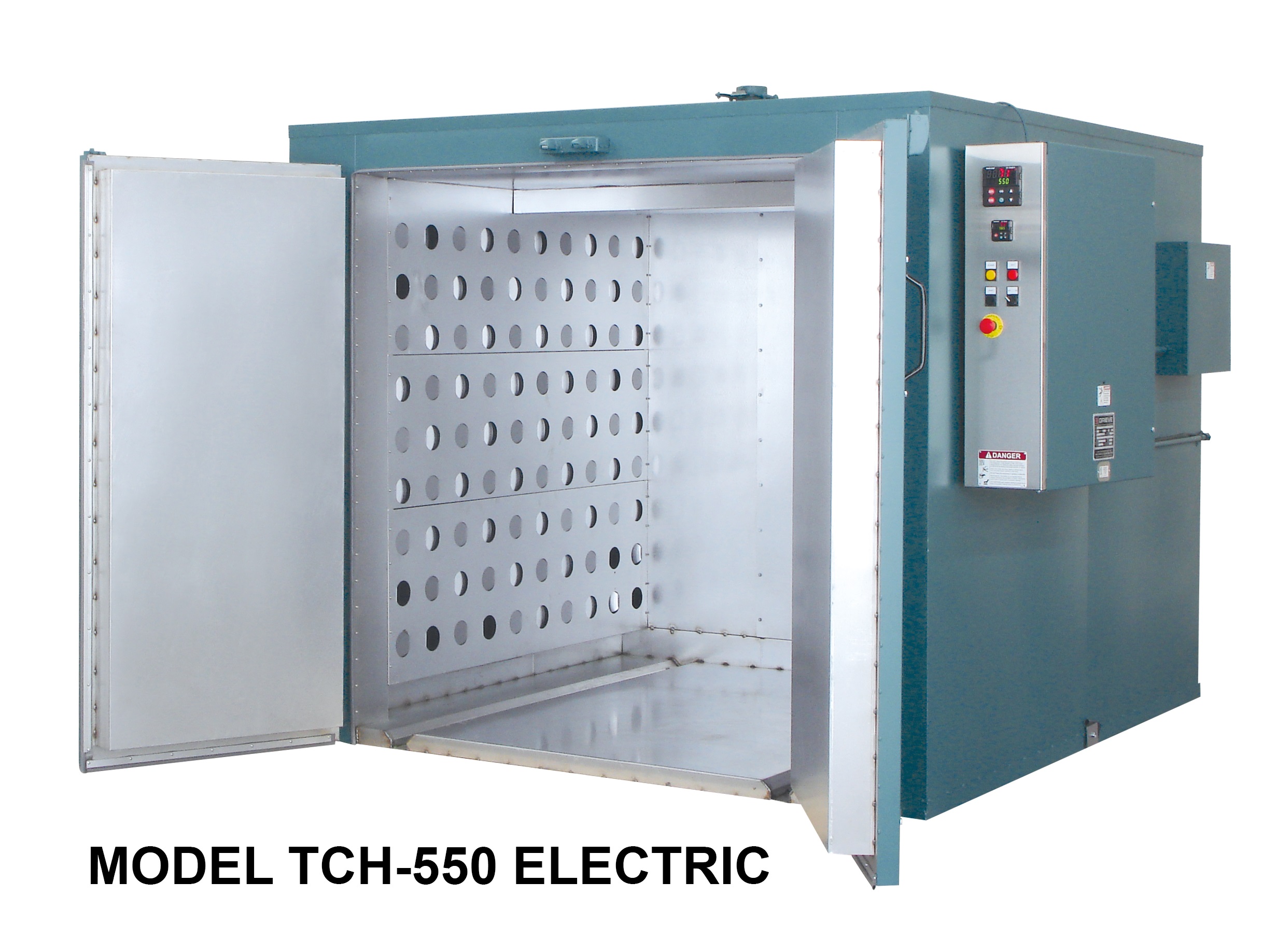

TCH-550 60" x 60" x 60" 125 80" x 91" x 74" 550°F 2,000 2 24 200,000 6" ± 0.3% ± 5°F 38 15 3,160 lbs

† Operating Characteristics

Truck Ovens Model Details:

Specifications for Truck Ovens

MODEL TA-550
MAXIMUM OPERATING TEMP 550°F
AIR FLOW Bottom to Top, Forced Convection
CONTROL ACCURACY ± 0.3%
OVEN UNIFORMITY ± 5°F
RISE TIME - ELECTRIC 30 mins
RISE TIME - GAS 15mins
WORKS SPACE DIMENSIONS (WxDxH) 36" x 36" x 60"
SHELVES INCLUDED None
NUMBER OF SHELVES MAX 12
SHELF CAPACITY 100
MAX LOAD CAPACITY Not Available
DOORS Manual
LOADING METHOD Cart or Truck
APPROXIMATE SHIP WEIGHT 2030 lbs
OUTSIDE DIMENSIONS (WxDxH) 56" x 67" x 74"
product-image
product-image
product-image
product-image

Standard Features for Truck Ovens

Certifications
  • UL Listed Control Panel
  • Meets the Requirements of the Following Standards:
    • NFPA 86 (Standard for Ovens and Furnaces)
    • NFPA 70 (National Electric Code)
    • FM (Factory Mutual)
    • OSHA
  • Caution:
    • When processing combustible material fire protection should be considered
    • Processing flammable solvents or vapors requires forced exhaust to provide safety ventilation. For more information see Class A Solvent Processing page at this website
Safety Equipment
  • Adjustable manual reset excess temperature interlock to turn off heat on malfunction of main temperature controller
  • Recirculating blower air flow safety switch to turn off heat on loss of recirculated air flow
  • Electrical interlock shuts off heat if power to recirculating blower is interrupted
  • Electric Heat Includes
    • Separate heating element control contactors to turn off heat on malfunction of main control contactors
  • Gas Heat Includes
    • Modulating burner for 1000 BTU per cubic foot natural gas at 6” water column pressure – propane available. Inlet 1” NPT
    • Automatic pre-ignition purge period to clear accumulated gas or fumes
    • Push button electric ignition
    • Microprocessor based electronic flame safeguard protection to continuously monitor flame and close gas valves if flame is not present
    • 325 CFM powered forced exhauster to provide combustion venting
    • Exhauster air flow safety switch to close gas valves on loss of venting
    • Two pilot valves to guarantee gas flow to pilot can be stopped
    • High and Low gas pressure switches to confirm safe operating pressure range
    • Two main burner safety shut off valves with valve seat position indicator to assure gas flow to main burner can be stopped
    • Proof of closure switch on one main valve to prevent igniting pilot unless main valve is closed
    • Leak test station at each pilot and main burner valve to allow testing for leakage through valve
Controls
  • Digital temperature controller
  • Motor control push buttons and on-off heat switch
  • LED pilot lights
  • 5 kA short circuit current rating (SCCR)
Construction
  • Choice of

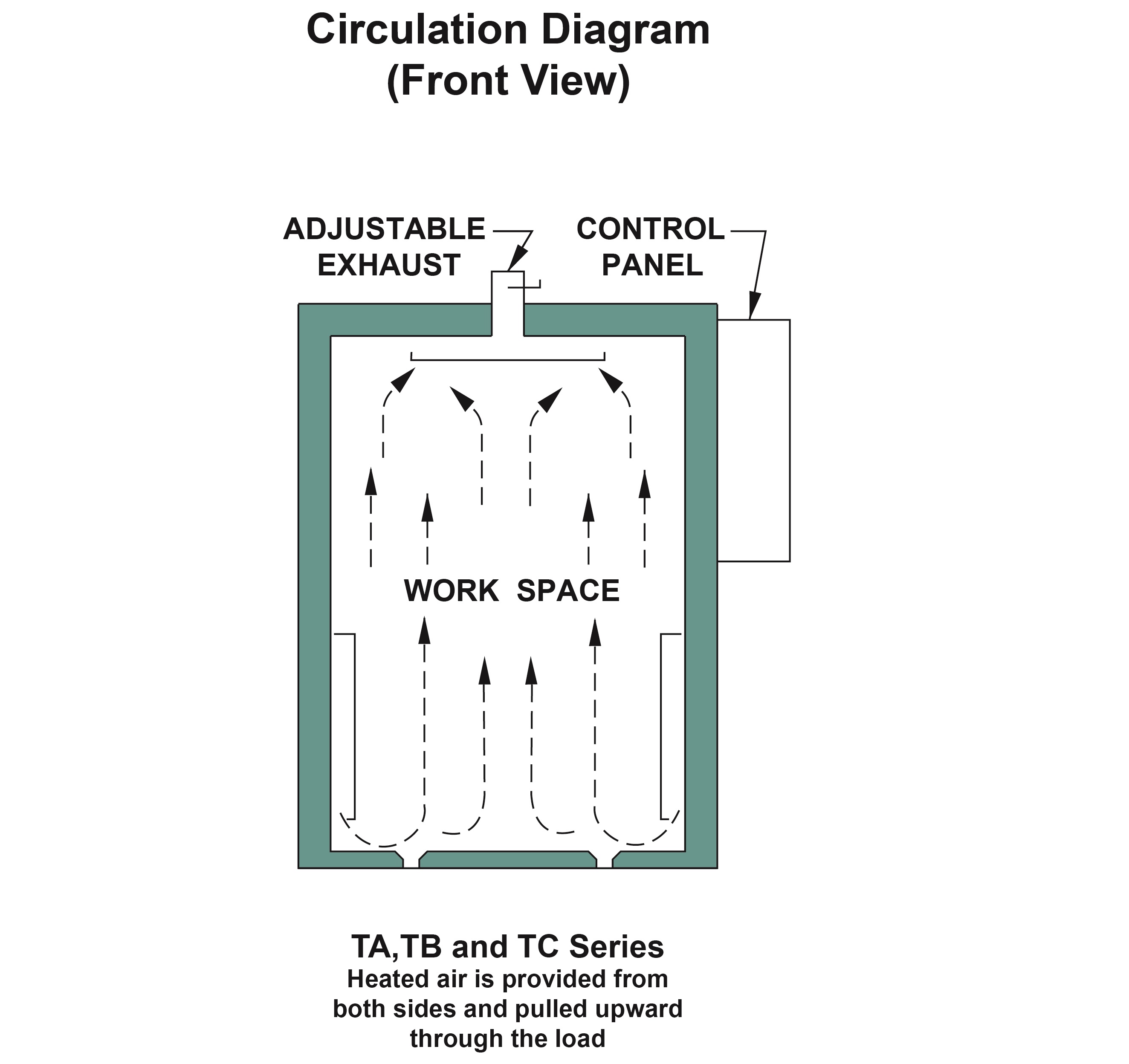

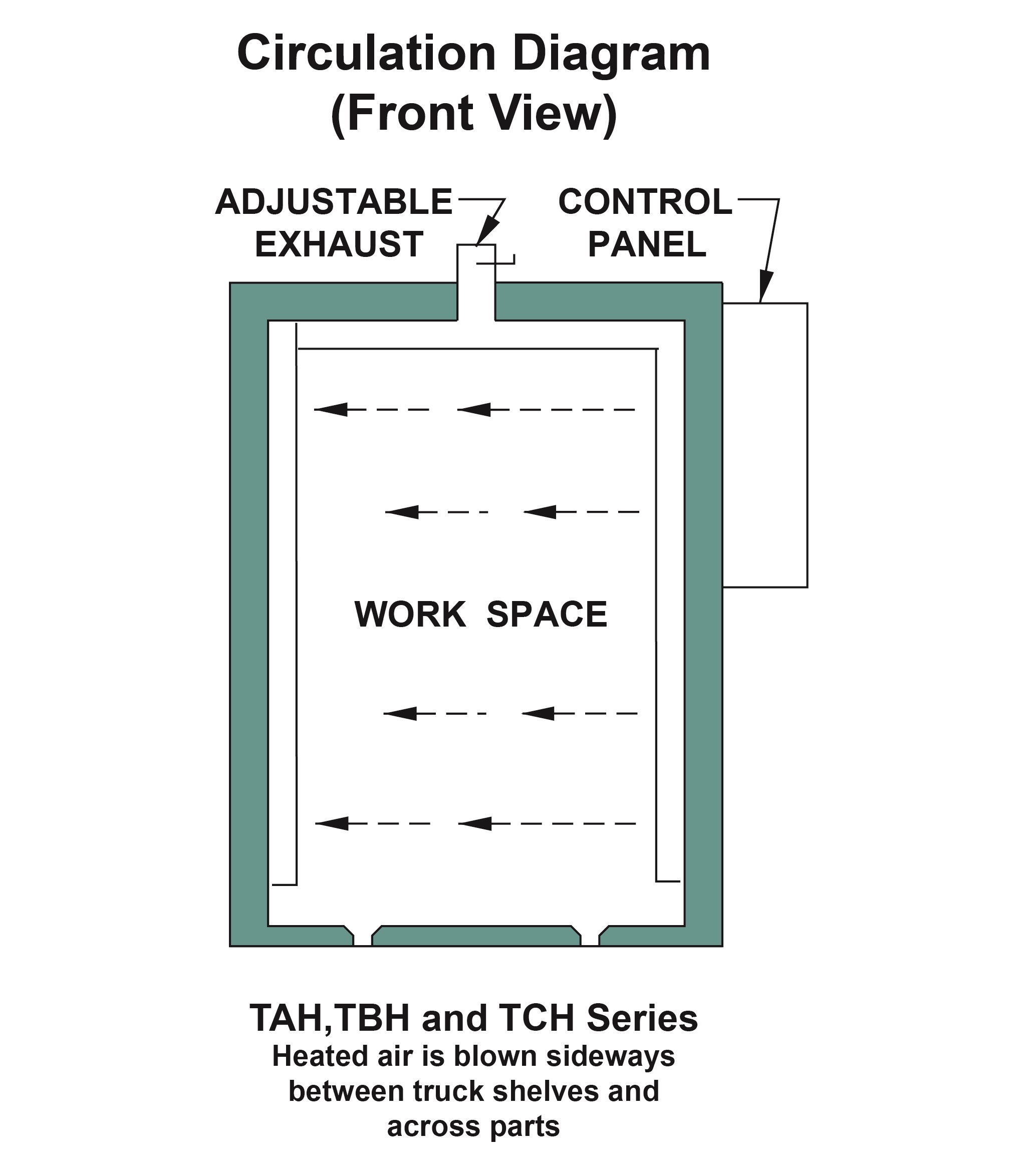

    • Recirculating air flow patterns – Combination or Horizontal air flow
    • Electric or Gas heat
    • 208 volt, 230 volt or 460 volt, 3-phase, 60 HZ – other input power available
  • All welded construction
  • Durable, electrically isolated, Incoloy tubular heating elements
  • Heat source located in heat chamber to prevent radiant heating
  • High pressure carbon steel recirculating blower
  • Adjustable fresh air intake and 4” diameter (6” on Gas Heat) exhaust outlet damper
  • Insulated with 10 lbs per cubic foot density rockwool insulation
  • Aluminized steel interior
  • Aluminized steel exterior with Trilite Green enamel finish
  • Brushed stainless steel control panel face
  • Heavy duty doors with explosion venting latches
  • Slip flashing at doorway to allow inner oven to expand without affecting door sealing
  • Silicone rubber door gasket
  • Full coverage supply and return duct work with adjustable opposed louvers on horizontal air flow models
  • Insulated floor with 2” wide truck tracks on 24” centers in 36” wide work space; 36” centers in 48” wide work space and 48” centers in 60” wide work space
  • Fully assembled and factory tested for temperature uniformity
  • 1 year limited warranty

Modifications & Accessories for Truck Ovens

  • Nickel Plated Carbon Steel Shelf

    Oven accessory adding a nickel plated carbon steel shelf with maximum distributed load of either 50lbs 100lbs, or 200lbs depending on the oven model.

    Add to quote
    Add to quote
  • Stainless Steel Shelf

    Oven accessory adding a Stainless Steel Shelf with maximum distributed load of either 50lbs, 100lbs or 200lbs depending on oven model.

    Add to quote
    Add to quote
  • Shelf Truck

    Oven accessory adding an aluminized steel Shelf Truck with 700 lbs. capacity.

    Scroll down to the bottom of the page for additional details.

    Add to quote
    Add to quote
  • Heavy Duty Shelf Truck

    Oven accessory adding a Heavy Duty, 1200 lbs. capacity carbon steel shelf truck.

    Scroll down to the bottom of the page for additional details.

    Add to quote
    Add to quote
  • Stainless Steel Heavy Duty Shelf Truck

    Oven accessory adding a Stainless Steel Heavy Duty Shelf Truck with 1200 lbs. capacity.

    Scroll down to the bottom of the page for additional details.

    Add to quote
    Add to quote
  • Stainless Steel Shelf Truck

    Oven accessory adding a Stainless Steel Shelf truck with 700 lbs. capacity.

    Scroll down to the bottom of the page for additional details.

    Add to quote
    Add to quote
  • Special Truck Tracks Or No Floor

    Oven modification adding a Special Truck Tracks Or No Floor (non-insulated floor with a steel plate)

    Add to quote
    Add to quote
  • Programmable Temperature Controller

    Oven modification adding a programmable Temperature Controller. Microprocessor based, digital indicating, thermocouple actuated, in lieu of standard controller.

    -Program Parameters: 40 profiles of up to 50 steps each, a real-time clock with battery backup to allow starting profile at any time of day

    -Digital Display, 4.3” color touch screen

    -Accuracy, ±0.1% of span plus 1 degree display error

    -Connectivity, Relay output for alarm or other notification, two (2) USB ports, Ethernet compatible

    Also Available:

    -Up to four (4) control channels of temperature, relative humidity or vacuum

    -Monitor up to16 sensors

    -Math and logic functions

    -Digital inputs and outputs

    -Data logging

    -Graphic Trending

    Add to quote
    Add to quote
  • Digital Timing Temperature Controller

    Modification adding a Digital Timing Temperature Controller. Microprocessor based, incorporates 99 hour 59 minute timer, starts timing temperature reaches set point and shuts down oven at end of set time.

    • Digital Display, two LED, alphanumeric, 4 digit displays; 0.875″ high for temperature display and 0.500″ high for set point display
    • Accuracy, ±0.1% of span plus 1 degree display error
    Add to quote
    Add to quote
