Tempering Furnace

Product Image
Product Image
Product Image

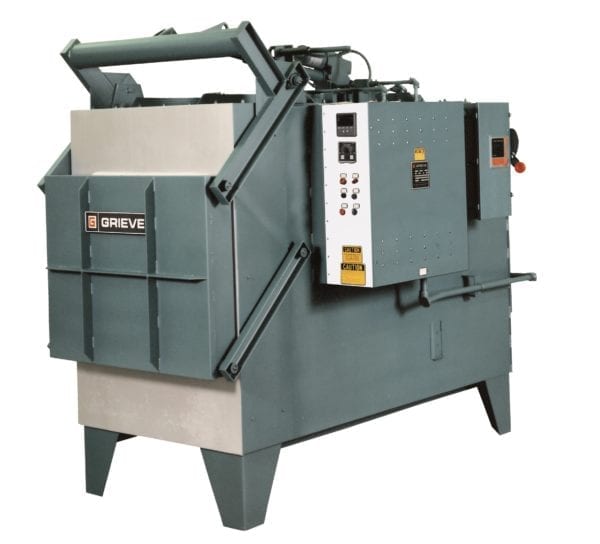

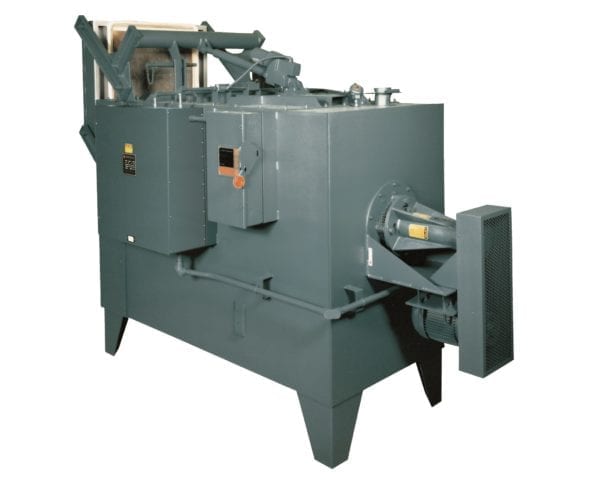

Tempering Furnace

These furnaces are used for a variety of heat treating applications including those requiring inert atmospheres. Recirculating blower provides high velocity vertical down air flow for excellent heat transfer. Precision microprocessor based temperature controls and energy-saving insulation maximize the performance of these rugged units.

Tempering Furnace Model Specifications:

Not for use with flammable solvents, vapors, or gases.

Model Workspace Outside Dimensions*(WxDxH) Max Temp Heat Input Insulation Thickness Operating Characteristics† Door Type Height w/ Door Open Hearth Rating Approx Shipping Weight
Dimensions(WxDxH) VolumeCu Ft ElectricKW GasBTU/HR Control Accuracy Temperature Uniformity Rise Time (Electric) Rise Time (Gas)
TF-183618 18" x 36" x 18" 6.8 35" x 87" x 74" 1,400°F 30 190,000 7" ± 0.3% ±12°F 95 85 78" 400 3,100 lbs

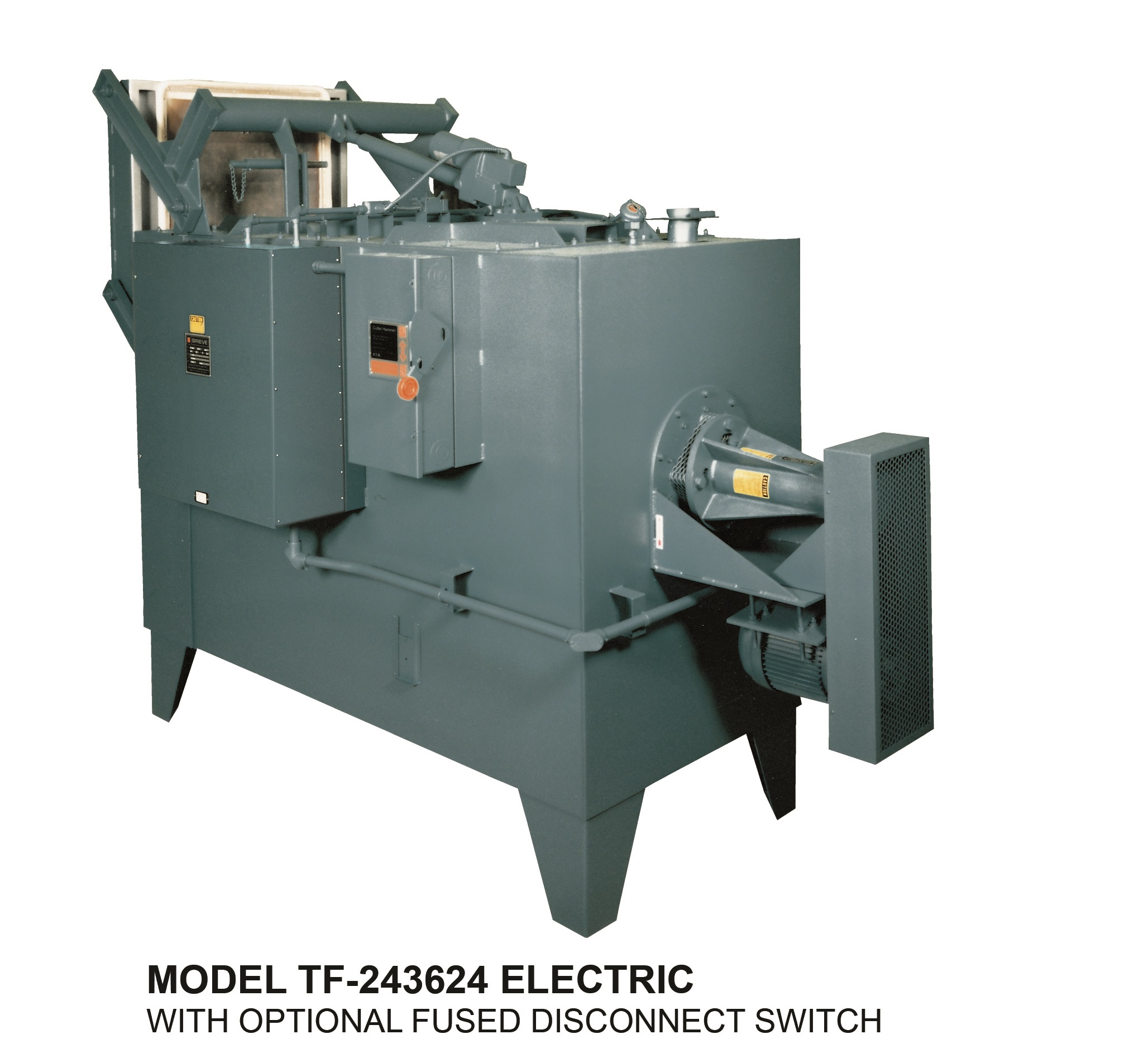

TF-243624 24" x 36" x 24" 12 47" x 92" x 80" 1,400°F 42 285,000 7" ± 0.3% ±14°F 95 85 90" 600 4,000 lbs
TF-304830 30" x 48" x 30" 25 53" x 106" x 86" 1,400°F 52 355,000 7" ± 0.3% ±14°F 90 80 102" 900 5,200 lbs
TF-364836 36" x 48" x 36" 36 59" x 111" x 126" 1,400°F 65 450,000 7" ± 0.3% ±20°F 90 80 126" 1100 6,400 lbs
TF-366036 36" x 60" x 36" 45 59" x 121" x 126" 1,400°F 74 510,000 7" ± 0.3% ±20°F 90 80 126" 1300 6,800 lbs
TF-484848 48" x 48" x 48" 64 71" x 114" x 150" 1,400°F 100 660,000 7" ± 0.3% ±22°F 80 70 150" 1500 8,700 lbs
TF-487248 48" x 72" x 48" 96 71" x 152" x 150" 1,400°F 120 800,000 7" ± 0.3% ±22°F 80 70 150" 2200 9,950 lbs

* Outside Dimensions

  • All Models:
  • Control panel overhang 9″ right side.
  • Blower motor overhang 18″ rear except 20″ on 15 HP.
  • Gas Models:
  • Burner overhang 18″ right side.
  • 325 CFM exhauster to 510,000 BTU/HR, 650 CFM above.

† Operating Characteristics

  • Accuracy as percent of controller span.
  • Uniformity at 100°F below maximum temperature.
  • Rise Time in minutes to 100°F below maximum temperature.
  • Tests run with empty oven and minimum exhaust.
  • Performance will vary with load and application.
  • See Control & Instrumentation Summary for additional details.

Tempering Furnace Model Details:

Specifications for Tempering Furnace

MODEL TF-183618
MAXIMUM OPERATING TEMP 1,400°F
AIR FLOW Bottom to Top, Forced Convection
CONTROL ACCURACY ± 0.3%
OVEN UNIFORMITY ±12°F
RISE TIME - ELECTRIC 95 mins
RISE TIME - GAS 85mins
WORKS SPACE DIMENSIONS (WxDxH) 18" x 36" x 18"
SHELVES INCLUDED None
NUMBER OF SHELVES MAX None
SHELF CAPACITY None
MAX LOAD CAPACITY Not Available
DOORS Electric
LOADING METHOD Floor
APPROXIMATE SHIP WEIGHT 3100 lbs
OUTSIDE DIMENSIONS (WxDxH) 35" x 87" x 74"
product-image
product-image
product-image
product-image

Standard Features for Tempering Furnace

Certifications
  • UL Listed Control Panel
  • Meets the Requirements of the Following Standards:
    • NFPA 86 (Standard for Ovens and Furnaces)
    • NFPA 70 (National Electric Code)
    • FM (Factory Mutual)
    • OSHA
  • Caution:
    • When processing combustible material fire protection should be considered
    • Not for use with flammable solvents or vapors. Other models available for these applications. For more information see Class A Solvent Processing page at this website
Safety Equipment
  • Adjustable manual reset excess temperature interlock to turn off heat on malfunction of main temperature controller
  • Recirculating blower air flow safety switch to turn off heat on loss of recirculated air flow
  • Electric Heat Includes
    • Separate heating element control contactors to turn off heat on malfunction of main control contactors
  • Gas Heat Includes
    • Automatic pre-ignition purge period to clear accumulated gas or fumes
    • Push button electric ignition
    • Microprocessor based electronic flame safeguard protection to continuously monitor flame and close gas valves if flame is not present
    • 325 CFM (650 CFM at 510,000 BTU/hr input) stainless steel powered forced exhauster to provide combustion venting
    • Exhauster air flow safety switch to close gas valves on loss of venting
    • Two pilot valves to guarantee gas flow to pilot can be stopped
    • High and Low gas pressure switches to confirm safe operating pressure range
    • Two main burner safety shut off valves with valve seat position indicator to assure gas flow to main burner can be stopped
    • Proof of closure switch on one main valve to prevent igniting pilot unless main valve is closed
    • Leak test station at each pilot and main burner valve to allow testing for leakage through valve
    • Door interlock drives main burners to low fire as door is opened to protect operator from flames
Controls
  • Digital temperature controller
  • LED pilot lights
  • On-off heat switch
  • 5 kA short circuit current rating (SCCR)
Construction
  • Choice of
    • Air or Inert Atmosphere construction
    • Electric or Gas heat (Air construction only)
    • 208 volt, 230 volt or 460 volt, 3-phase, 60 HZ – other input power available
  • All welded construction
  • High temperature alloy coiled wire heating elements supported in alloy rack
  • Modulating burner for 1000 BTU per cubic foot natural gas at 2 psig pressure – propane available – propane available. Inlet 1” NPT
  • Heat source located in heat chamber to prevent radiant heating
  • High pressure, air cooled, stainless steel recirculating blower
  • Full coverage supply and return duct work with adjustable opposed louvers
  • Adjustable fresh air intake and 4” diameter (6” on Gas Heat) exhaust outlet damper
  • 16 gauge 304 stainless steel work space interior
  • Refractory fiber and fire brick heat chamber
  • Insulated with 2” of rockwool and 5”of light weight, energy saving refractory ceramic fiber
  • Load supporting floor insulated with 2” of 18-½ lbs per cubic foot density 1900⁰F block and 4-½” of firebrick,
  • 3/16” steel plate reinforced furnace shell with Trilite Green enamel finish
  • ½” thick steel front plate around door
  • Fire brick throat and doorsill to protect furnace during loading
  • Brushed stainless steel control panel face

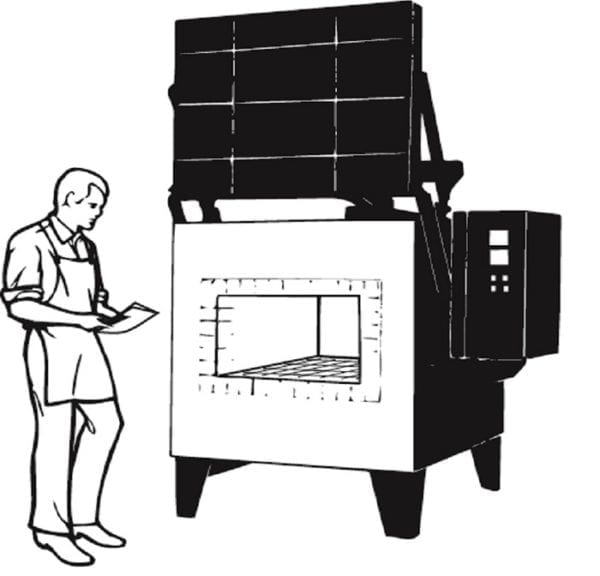

  • Powered vertical lift door
    o Electric door: Electromechanical operator pivots door, supported by structural steel arms and bearings, upward above furnace
    o Air door: Air cylinder lifts door hanging from heavy duty roller chain supported by sprockets, shaft and pillow block bearings
  • Door hot side faces away from operator
  • Soft insulation on door hot face seals against throat brick and steel front plate
  • Stainless steel grate at bottom of work space for loading
  • Fully assembled and factory tested
  • 1 year limited warranty

Modifications & Accessories for Tempering Furnace

  • Programmable Temperature Controller

    Oven modification adding a programmable Temperature Controller. Microprocessor based, digital indicating, thermocouple actuated, in lieu of standard controller.

    -Program Parameters: 40 profiles of up to 50 steps each, a real-time clock with battery backup to allow starting profile at any time of day

    -Digital Display, 4.3” color touch screen

    -Accuracy, ±0.1% of span plus 1 degree display error

    -Connectivity, Relay output for alarm or other notification, two (2) USB ports, Ethernet compatible

    Also Available:

    -Up to four (4) control channels of temperature, relative humidity or vacuum

    -Monitor up to16 sensors

    -Math and logic functions

    -Digital inputs and outputs

    -Data logging

    -Graphic Trending

    Add to quote
    Add to quote
  • Digital Timing Temperature Controller

    Modification adding a Digital Timing Temperature Controller. Microprocessor based, incorporates 99 hour 59 minute timer, starts timing temperature reaches set point and shuts down oven at end of set time.

    • Digital Display, two LED, alphanumeric, 4 digit displays; 0.875″ high for temperature display and 0.500″ high for set point display
    • Accuracy, ±0.1% of span plus 1 degree display error
    Add to quote
    Add to quote
  • Recording Thermometer

    Accessory adding a Recording Thermometer. Thermocouple actuated.

    • Record: 10″ diameter circular chart 24 hour chart rotation
    • Digital Display: 0.56″ high, LED, alphanumeric, 4 digit display; LED status display
    • Accuracy: ±0.25%of span plus 1 degree display error
    Add to quote
    Add to quote
  • SCR Power Controller

    Electrical modification adding an SCR Power Controller. Features:

    •Silicon controlled rectifier power controllers are completely solid state industrial controllers that ensure precise proportioning of electric power to the heating elements.

    •Oven temperature is maintained smoothly and evenly over the entire temperature range of the unit.

    •SCR power controllers minimize maintenance, as there are no moving parts or electrical contacts to wear out.

    •Heating element fatigue is reduced since the elements do not cool between releases of electric power.

    •Zero voltage firing, including the first one half cycle of voltage, minimizes radio frequency and electromagnetic interference.

    •Transient voltage suppressor networks are included, and the units are provided with protective fusing.

    Add to quote
    Add to quote
  • Digital Shut Down Timer

    Accessory adding a Digital Shut Down Timer. Shuts down oven, selectable range, continuous “hold” feature.

    Add to quote
    Add to quote
  • Install Customer Supplied Temperature Controller

    Modification installing a customer supplied temperature controller in lieu of standard controller.

    Add to quote
    Add to quote
  • Digital Batch Timer

    Oven modification adding a Digital Batch Timer. Uniformly timing batch operations, continuous alarm with door interlock, alarm sounds at end of preset time until door is opened or timer reset.

    Add to quote
    Add to quote
  • Supply Oven Without Controller

    Supply without temperature controller. Supply cutout, thermocouple, and wires only. Customer to supply and install temperature controller.

    Add to quote
    Add to quote
  • Program Timer

    Oven modification adding a programmable 24 hour, 7 day timer.

    Add to quote
    Add to quote
