High Temperature Universal Ovens

Product Image
Product Image
Product Image

High Temperature Universal Ovens

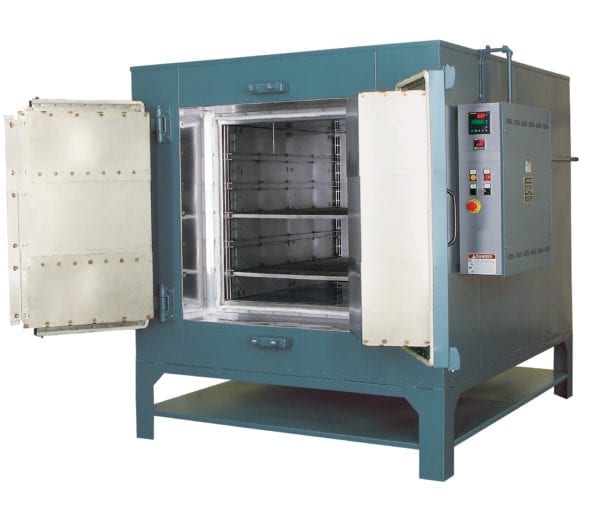

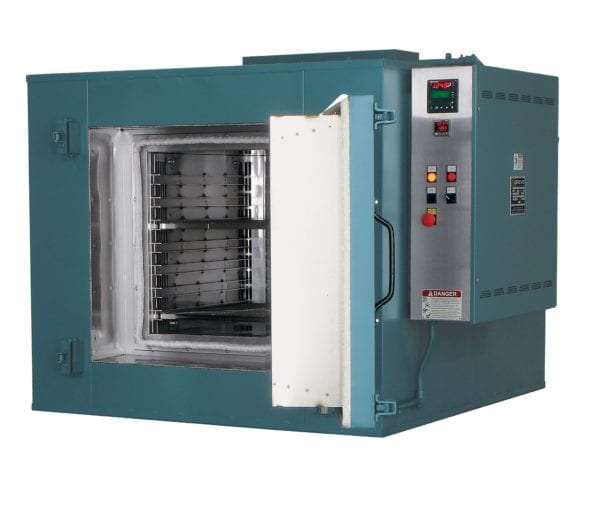

Front-to-back horizontal air flow accommodates virtually any oven loading without restricting air passage. Work can be shelf loaded or placed directly on the optional reinforced work space bottom. Designed for annealing, sintering, hardening or any other application where a dependable source of heated air with higher temperatures is required.

High Temperature Universal Ovens Model Specifications:

CAUTION:  Ovens processing combustible material are required by National Fire Protection Association 86 Standard for Ovens and Furnaces (NFPA 86) to have a fire suppression system.  If flammable solvents or vapors are present in an oven, OSHA requires conformance with NFPA 86 Class A Oven requirements.  A powered forced exhauster and other non-standard safety equipment must be added.  See Class A Oven Equipment for Solvent Processing resource page, reference our FAQs or contact us us for more information.

Model Workspace Outside Dimensions*(WxDxH) Max Temp Blower Heat Input Insulation Thickness Operating Characteristics† Approx Shipping Weight
Dimensions(WxDxH) VolumeCu Ft CFM HP ElectricKW GasBTU/HR Control Accuracy Temperature Uniformity Rise Time (Electric) Rise Time (Gas)
AA-1050 24" x 24" x 24" 8 51" x 60" x 45.5" 1,050°F 600 ½ 12 Not Rated 10" ±0.3% ±10°F 86 Not Available 2,275 lbs
AA-1250 24" x 24" x 24" 8 55" x 64" x 49.5" 1,250°F 1,000 ¾ 18 Not Rated 12" ±0.3% ±13°F 88 Not Available 2,705 lbs
AF-1050 24" x 36" x 24" 12 51" x 72" x 45.5" 1,050°F 1,000 1 12 Not Rated 10" ±0.3% ±10°F 94 Not Available 2,580 lbs
AF-1250 24" x 36" x 24" 12 55" x 76" x 49.5" 1,250°F 1,200 1 18 Not Rated 12" ±0.3% ±13°F 96 Not Available 3,085 lbs
AB-1050 36" x 36" x 36" 27 63" x 70" x 57.5" 1,050°F 1,000 1 18 Not Rated 10" ±0.3% ±10°F 100 Not Available 3,265 lbs
AB-1250 36" x 36" x 36" 27 67" x 74" x 61.5" 1,250°F 1,200 1 24 Not Rated 12" ±0.3% ±13°F 112 Not Available 4,030 lbs
AG-1050 36" x 48" x 36" 36 63" x 82" x 57.5" 1,050°F 1,200 1 24 Not Rated 10" ±0.3% ±10°F 113 Not Available 4,095 lbs
AG-1250 36" x 48" x 36" 36 67" x 86" x 61.5" 1,250°F 1,400 1 ½ 30 Not Rated 12" ±0.3% ±13°F 125 Not Available 4,535 lbs

† Operating Characteristics

  • Accuracy as percent of controller span.
  • Uniformity at 100°F below maximum temperature.
  • Rise Time in minutes to 100°F below maximum temperature.
  • Tests run with empty oven and minimum exhaust.
  • Performance will vary with load and application.
  • See Control & Instrumentation Summary for additional details.

High Temperature Universal Ovens Model Details:

Specifications for High Temperature Universal Ovens

MODEL AA-1050
MAXIMUM OPERATING TEMP 1,050°F
AIR FLOW Forced Convection, Front to Back
CONTROL ACCURACY ±0.3%
OVEN UNIFORMITY ±10°F
RISE TIME - ELECTRIC 86 mins
RISE TIME - GAS Not Rated
WORKS SPACE DIMENSIONS (WxDxH) 24" x 24" x 24"
SHELVES INCLUDED 2
NUMBER OF SHELVES MAX 7
SHELF CAPACITY 100
MAX LOAD CAPACITY Not Available
DOORS Manual
LOADING METHOD Shelf
APPROXIMATE SHIP WEIGHT 2275 lbs
OUTSIDE DIMENSIONS (WxDxH) 51" x 60" x 45.5"
product-image
product-image
product-image
product-image

Standard Features for High Temperature Universal Ovens

Certifications
  • UL Listed Control Panel
  • Meets the Requirements of the Following Standards:
    • NFPA 86 (Standard for Ovens and Furnaces)
    • NFPA 70 (National Electric Code)
    • FM (Factory Mutual)
    • OSHA
  • Caution:
    • When processing combustible material fire protection should be considered
    • Processing flammable solvents or vapors requires forced exhaust to provide safety ventilation. For more information see Class A Solvent Processing page at this website
Safety Equipment
  • Adjustable manual reset excess temperature interlock to turn off heat on malfunction of main temperature controller
  • Separate heating element control contactors to turn off heat on malfunction of main control contactors
  • Recirculating blower air flow safety switch to turn off heat on loss of recirculated air flow
  • Electrical interlock shuts off heat if power to recirculating blower is interrupted
Controls
  • Digital temperature controller
  • Heat chamber temperature controller on 1250⁰F models to limit heating element temperature
  • Motor control push buttons and on-off heat switch
  • LED pilot lights
  • 5 kA short circuit current rating (SCCR)
Construction
  • 208 volt, 230 volt or 460 volt, 3-phase, 60 HZ – other input power available
  • All welded construction
  • Durable, electrically isolated, Incoloy tubular heating elements
  • Heating elements located in heat chamber to prevent radiant heating
  • High pressure stainless steel recirculating blower
  • Adjustable fresh air intake and 4” diameter exhaust outlet damper
  • Channel shelf supports prevent shelves tipping
  • Insulated with 2” of refractory ceramic fiber and 10 lbs per cubic foot density rockwool insulation
  • 16 gauge 304 stainless steel interior with stainless hardware
  • Aluminized steel exterior with Trilite Green enamel finish
  • Brushed stainless steel control panel face
  • Exceptionally heavy duty doors, hinges and door frame with explosion venting latches
  • Dual fiberglass door gasket with stainless steel spring insert; one gasket seals to inside door surface and second seals to outer oven face
  • Slip flashing at doorway to allow inner oven to expand without affecting door sealing
  • Fully assembled and factory tested for temperature uniformity
  • 1 year limited warranty

Modifications & Accessories for High Temperature Universal Ovens

  • Stainless Steel Shelf

    Oven accessory adding a Stainless Steel Shelf with maximum distributed load of either 50lbs, 100lbs or 200lbs depending on oven model.

    Add to quote
    Add to quote
  • Integral Oven Legs

    Oven modification adding integral oven legs. Includes steel plate shelf.

    Add to quote
    Add to quote
  • Removable Oven Stand

    Oven modification adding a removable oven stand. Includes steel plate shelf.

    Add to quote
    Add to quote
  • Reinforced Workspace Bottom

    Oven modification adding a reinforced workspace bottom of 500 lbs. capacity at removable subway grate; reduces available work space height by 1″.

    Add to quote
    Add to quote
  • Programmable Temperature Controller

    Oven modification adding a programmable Temperature Controller. Microprocessor based, digital indicating, thermocouple actuated, in lieu of standard controller.

    -Program Parameters: 40 profiles of up to 50 steps each, a real-time clock with battery backup to allow starting profile at any time of day

    -Digital Display, 4.3” color touch screen

    -Accuracy, ±0.1% of span plus 1 degree display error

    -Connectivity, Relay output for alarm or other notification, two (2) USB ports, Ethernet compatible

    Also Available:

    -Up to four (4) control channels of temperature, relative humidity or vacuum

    -Monitor up to16 sensors

    -Math and logic functions

    -Digital inputs and outputs

    -Data logging

    -Graphic Trending

    Add to quote
    Add to quote
  • Digital Timing Temperature Controller

    Modification adding a Digital Timing Temperature Controller. Microprocessor based, incorporates 99 hour 59 minute timer, starts timing temperature reaches set point and shuts down oven at end of set time.

    • Digital Display, two LED, alphanumeric, 4 digit displays; 0.875″ high for temperature display and 0.500″ high for set point display
    • Accuracy, ±0.1% of span plus 1 degree display error
    Add to quote
    Add to quote
  • Recording Thermometer

    Accessory adding a Recording Thermometer. Thermocouple actuated.

    • Record: 10″ diameter circular chart 24 hour chart rotation
    • Digital Display: 0.56″ high, LED, alphanumeric, 4 digit display; LED status display
    • Accuracy: ±0.25%of span plus 1 degree display error
    Add to quote
    Add to quote
  • SCR Power Controller

    Electrical modification adding an SCR Power Controller. Features:

    •Silicon controlled rectifier power controllers are completely solid state industrial controllers that ensure precise proportioning of electric power to the heating elements.

    •Oven temperature is maintained smoothly and evenly over the entire temperature range of the unit.

    •SCR power controllers minimize maintenance, as there are no moving parts or electrical contacts to wear out.

    •Heating element fatigue is reduced since the elements do not cool between releases of electric power.

    •Zero voltage firing, including the first one half cycle of voltage, minimizes radio frequency and electromagnetic interference.

    •Transient voltage suppressor networks are included, and the units are provided with protective fusing.

    Add to quote
    Add to quote
  • Digital Shut Down Timer
