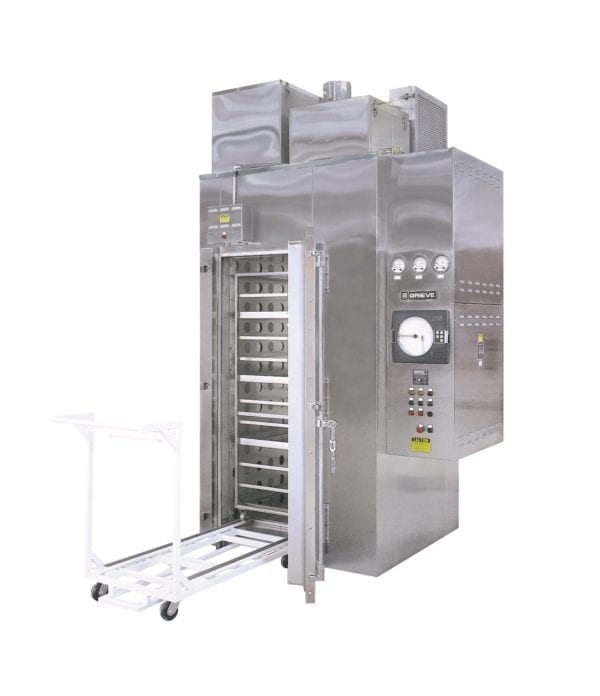

Class 100 Clean Room Truck

Truck processing where eliminating particle contamination is required. Applications include sterilization, depyrogenation, curing and drying. These electrically heated ovens provide a low particle count Class 100 atmosphere inside. Exterior construction minimizes particle generation. Heavy duty units equally suited for pharmaceutical or industrial applications.

Class 100 Clean Room Truck Model Specifications:

CAUTION:  Ovens processing combustible material are required by National Fire Protection Association 86 Standard for Ovens and Furnaces (NFPA 86) to have a fire suppression system.  If flammable solvents or vapors are present in an oven, OSHA requires conformance with NFPA 86 Class A Oven requirements.  A powered forced exhauster and other non-standard safety equipment must be added.  See Class A Oven Equipment for Solvent Processing resource page, reference our FAQs or contact us us for more information.

Model Workspace Outside Dimensions*(WxDxH) Max Temp Blower Heat Input Insulation Thickness Operating Characteristics† Approx Shipping Weight
Dimensions(WxDxH) VolumeCu Ft CFM HP ElectricKW GasBTU/HR Control Accuracy Temperature Uniformity Rise Time (Electric) Rise Time (Gas)
TLA-500 36" x 42" x 66" 57.8 91" x 59" x 107" 500°F 2,400 3 30 Not Rated 6" ±0.3% ±5°F 45 Not Available 3,005 lbs
TLB-500 42" x 42" x 66" 67.4 97" x 59" x 107" 500°F 2,400 3 40 Not Rated 6" ±0.3% ±5°F 40 Not Available 3,175 lbs
TLC-500 42" x 54" x 66" 86.6 98" x 71" x 107" 500°F 3,800 5 45 Not Rated 6" ±0.3% ±5°F 40 Not Available 3,585 lbs
TLD-500 42" x 78" x 66" 125.1 98" x 94" x 107" 500°F 5,500 5 60 Not Rated 6" ±0.3% ±5°F 35 Not Available 4,325 lbs
TLE-500 42" x 102" x 66" 163.6 98" x 119" x 107" 500°F 7,200 7 ½ 80 Not Rated 6" ±0.3% ±5°F 35 Not Available 5,120 lbs

† Operating Characteristics

Class 100 Clean Room Truck Model Details:

Specifications for Class 100 Clean Room Truck

MODEL TLA-500
MAXIMUM OPERATING TEMP 500°F
AIR FLOW Forced Convection, Side to Side
CONTROL ACCURACY ±0.3%
OVEN UNIFORMITY ±5°F
RISE TIME - ELECTRIC 45 mins
RISE TIME - GAS Not Rated
WORKS SPACE DIMENSIONS (WxDxH) 36" x 42" x 66"
SHELVES INCLUDED None
NUMBER OF SHELVES MAX 9
SHELF CAPACITY 100
MAX LOAD CAPACITY Not Available
DOORS Manual
LOADING METHOD Cart or Truck
APPROXIMATE SHIP WEIGHT 3005 lbs
OUTSIDE DIMENSIONS (WxDxH) 91" x 59" x 107"
product-image
product-image
product-image
product-image

Standard Features for Class 100 Clean Room Truck

Certifications
  • UL Listed Control Panel
  • Meets the Requirements of the Following Standards:
    • NFPA 86 (Standard for Ovens and Furnaces)
    • NFPA 70 (National Electric Code)
    • FM (Factory Mutual)
    • OSHA
  • Caution:
    • When processing combustible material fire protection should be considered
    • Processing flammable solvents or vapors requires forced exhaust to provide safety ventilation. For more information see Class A Solvent Processing page at this website
Safety Equipment
  • Adjustable manual reset excess temperature interlock to turn off heat on malfunction of main temperature controller
  • Separate heating element control contactors to turn off heat on malfunction of main control contactors
  • Recirculating blower air flow safety switch to turn off heat on loss of recirculated air flow
  • Electrical interlock shuts off heat if power to recirculating blower is interrupted
Controls
  • Digital temperature controller
  • Solid state heating element contactor
  • Motor control push buttons and on-off heat switch
  • LED pilot lights
  • 5 kA short circuit current rating (SCCR)
Construction
  • 208 volt, 230 volt or 460 volt, 3-phase, 60 HZ – other input power available
  • All welded construction – interior seams continuously back-welded on insulation side
  • Durable, electrically isolated, Incoloy tubular heating elements
  • Heating elements located in heat chamber to prevent radiant heating
  • Direct driven, high pressure stainless steel recirculating blower with silicone rubber blower shaft seal
  • Full coverage supply and return duct work with adjustable opposed louvers
  • Interior duct work easily removable for cleaning
  • Adjustable fresh air intake and 4” diameter exhaust outlet damper
  • Wall penetrations through pipes welded at inside wall and fitted with compression fitting at outside of oven
  • HEPA high temperature recirculation filters, stainless steel housing and separators , 99.97% efficient on 0.3 micron particles
  • Test port upstream and downstream of HEPA filters
  • Mechanical enclosure covers all components to provide continuous exterior surface for easy cleaning
  • Insulated with 10 lbs per cubic foot density rockwool insulation
  • Insulated floor with removable truck wheel guide tracks
  • 16 gauge, 2B finish, 304 stainless steel interior with stainless hardware
  • Aluminized steel exterior with white 2-part epoxy finish
  • Brushed stainless steel outer door cover and control panel face
  • Heavy duty door with positive latching door hardware
  • Inner oven walls extended through oven throat area to seal directly against silicone rubber door seal
  • Fully assembled and factory tested for temperature uniformity
  • 1 year limited warranty

Modifications & Accessories for Class 100 Clean Room Truck

  • Stainless Steel Shelf

    Oven accessory adding a Stainless Steel Shelf with maximum distributed load of either 50lbs, 100lbs or 200lbs depending on oven model.

    Add to quote
    Add to quote

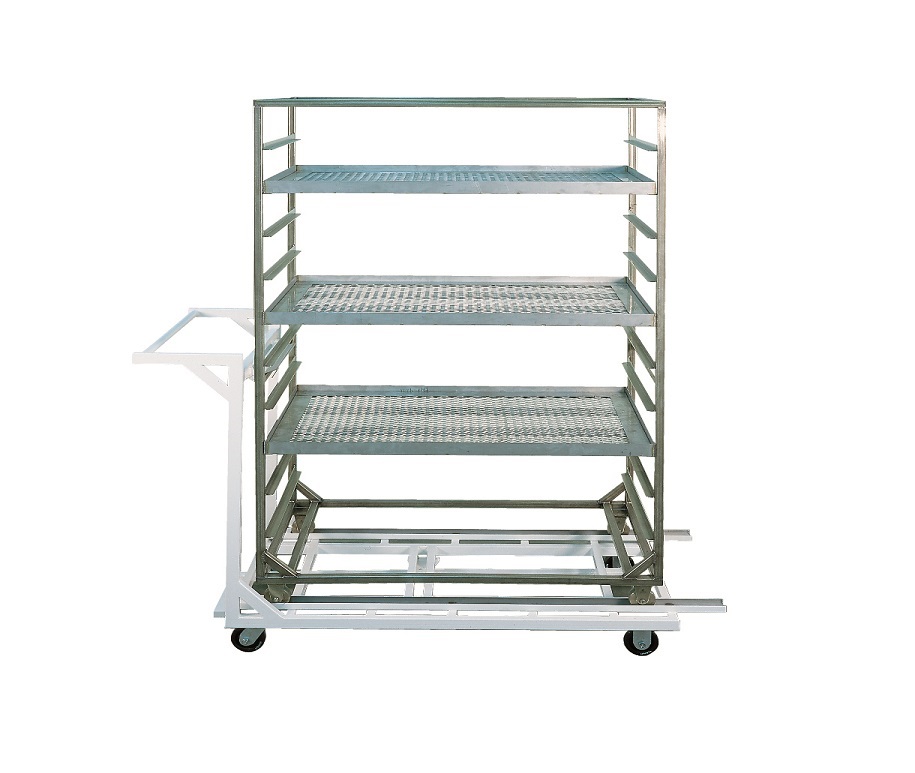

  • Stainless Steel Shelf Truck

    Oven accessory adding a 1000 lbs. capacity Stainless Steel Shelf Truck with stainless steel casters, to be supported by Transfer Dolly.

    Scroll down to the bottom of the page for additional details.

    Add to quote
    Add to quote
  • Transfer Dolly

    Accessory adding a Transfer Dolly for transfer of shelf truck to and from oven.

    Scroll down to the bottom of the page for additional details.

    Add to quote
    Add to quote
  • Programmable Temperature Controller

    Oven modification adding a programmable Temperature Controller. Microprocessor based, digital indicating, thermocouple actuated, in lieu of standard controller.

    -Program Parameters: 40 profiles of up to 50 steps each, a real-time clock with battery backup to allow starting profile at any time of day

    -Digital Display, 4.3” color touch screen

    -Accuracy, ±0.1% of span plus 1 degree display error

    -Connectivity, Relay output for alarm or other notification, two (2) USB ports, Ethernet compatible

    Also Available:

    -Up to four (4) control channels of temperature, relative humidity or vacuum

    -Monitor up to16 sensors

    -Math and logic functions

    -Digital inputs and outputs

    -Data logging

    -Graphic Trending

    Add to quote
    Add to quote
  • Digital Timing Temperature Controller

    Modification adding a Digital Timing Temperature Controller. Microprocessor based, incorporates 99 hour 59 minute timer, starts timing temperature reaches set point and shuts down oven at end of set time.

    • Digital Display, two LED, alphanumeric, 4 digit displays; 0.875″ high for temperature display and 0.500″ high for set point display
    • Accuracy, ±0.1% of span plus 1 degree display error
    Add to quote
    Add to quote
  • Recording Thermometer

    Accessory adding a Recording Thermometer. Thermocouple actuated.

    • Record: 10″ diameter circular chart 24 hour chart rotation
    • Digital Display: 0.56″ high, LED, alphanumeric, 4 digit display; LED status display
    • Accuracy: ±0.25%of span plus 1 degree display error
    Add to quote
    Add to quote
  • SCR Power Controller

    Electrical modification adding an SCR Power Controller. Features:

    •Silicon controlled rectifier power controllers are completely solid state industrial controllers that ensure precise proportioning of electric power to the heating elements.

    •Oven temperature is maintained smoothly and evenly over the entire temperature range of the unit.

    •SCR power controllers minimize maintenance, as there are no moving parts or electrical contacts to wear out.

    •Heating element fatigue is reduced since the elements do not cool between releases of electric power.

    •Zero voltage firing, including the first one half cycle of voltage, minimizes radio frequency and electromagnetic interference.

    •Transient voltage suppressor networks are included, and the units are provided with protective fusing.

    Add to quote
    Add to quote
  • Digital Shut Down Timer

    Accessory adding a Digital Shut Down Timer. Shuts down oven, selectable range, continuous “hold” feature.

    Add to quote
    Add to quote
  • Install Customer Supplied Temperature Controller

    Modification installing a customer supplied temperature controller in lieu of standard controller.

    Add to quote
    Add to quote
