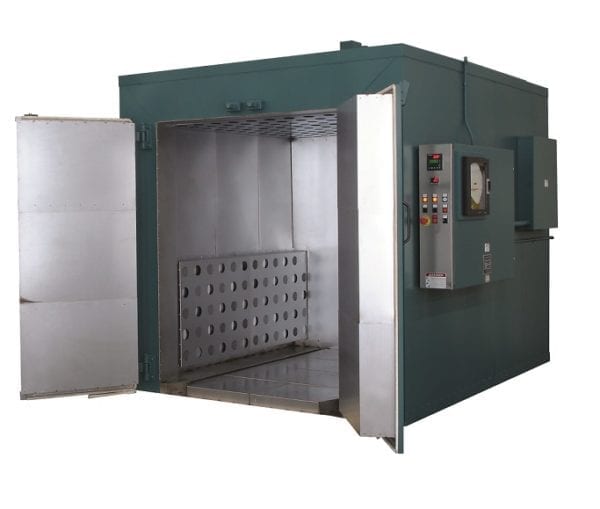

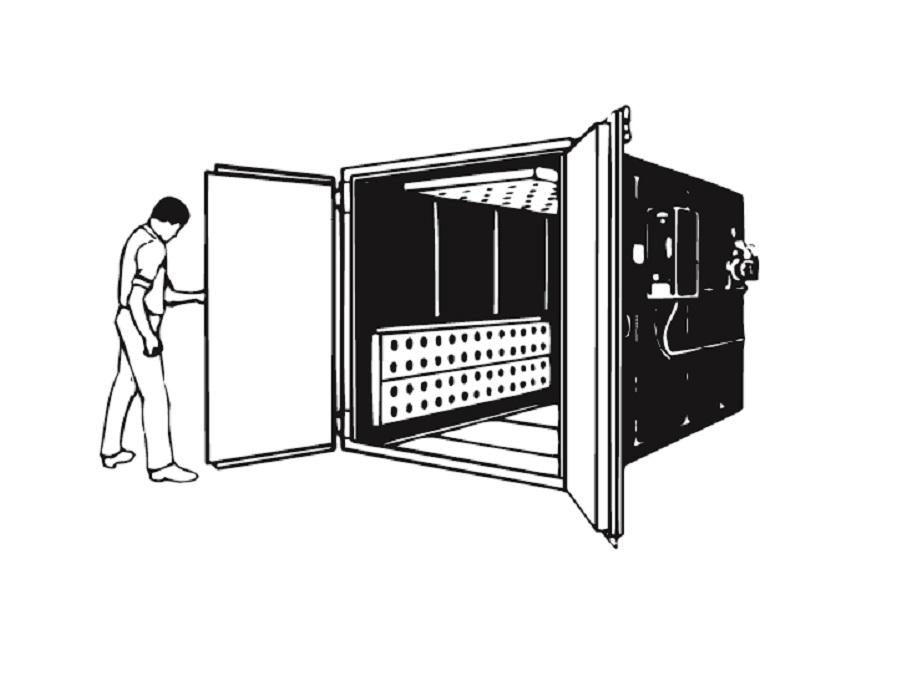

Walk-In Ovens Combination Air Flow Rear Mounted Heat Chamber

Product Image
Product Image

Walk-In Ovens Combination Air Flow Rear Mounted Heat Chamber

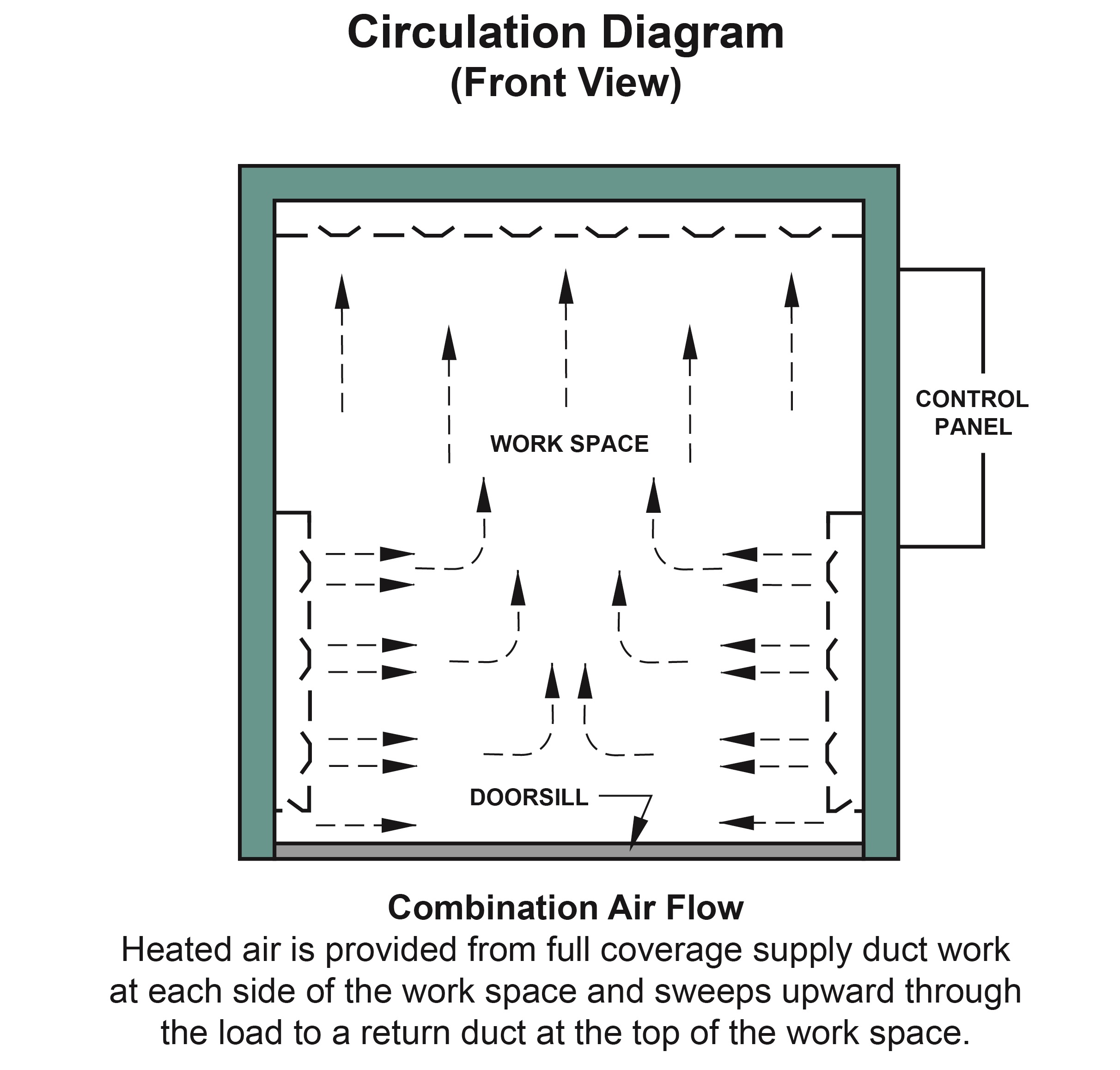

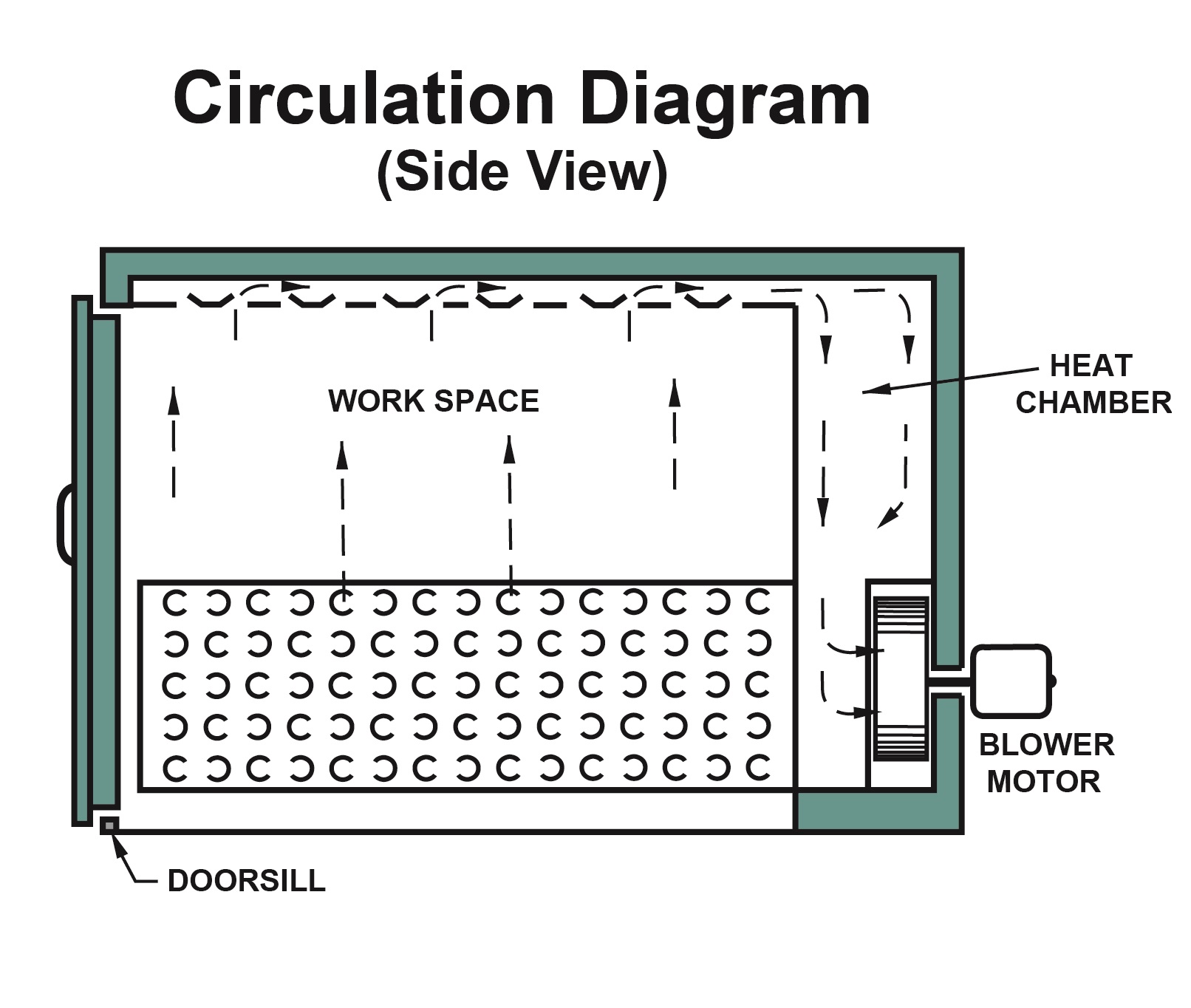

These ovens produce heated air that is provided from full coverage supply duct work at each side of the work space and sweeps upward through the load to a return duct at the top of the work space. Ideal for large parts placed directly on oven floor or loaded on a truck. Rear heat chamber for easy handling, low profile equipment.

Walk-In Ovens Combination Air Flow Rear Mounted Heat Chamber Model Specifications:

CAUTION:  Ovens processing combustible material are required by National Fire Protection Association 86 Standard for Ovens and Furnaces (NFPA 86) to have a fire suppression system.  If flammable solvents or vapors are present in an oven, OSHA requires conformance with NFPA 86 Class A Oven requirements.  A powered forced exhauster and other non-standard safety equipment must be added.  See Class A Oven Equipment for Solvent Processing resource page, reference our FAQs or contact us us for more information.

Model Workspace Outside Dimensions*(WxDxH) Max Temp Blower Heat Input Insulation Thickness Operating Characteristics† Approx Shipping Weight
Dimensions(WxDxH) VolumeCu Ft CFM HP ElectricKW GasBTU/HR Control Accuracy Temperature Uniformity Rise Time (Electric) Rise Time (Gas)
WRC446-500 48" x 48" x 72" 114 67" x 86" x 87" 500°F 2,450 1 ½ 30 350,000 6" ±0.3% ±6°F 40 20 3,055 lbs
WRC446-650 48" x 48" x 72" 96 69" x 88" x 88" 650°F 2,450 1 ½ 40 350,000 7" ±0.3% ±8°F 45 25 3,465 lbs
WRC446-800 48" x 48" x 72" 96 73" x 90" x 90" 800°F 3,000 2 45 350,000 8" ±0.3% ±10°F 55 35 3,885 lbs
WRC566-500 60" x 72" x 72" 180 79" x 110" x 87" 500°F 3,300 2 40 350,000 6" ±0.3% ±6°F 40 20 3,935 lbs
WRC566-650 60" x 72" x 72" 180 81" x 112" x 88" 650°F 3,300 2 45 350,000 7" ±0.3% ±8°F 50 25 4,650 lbs
WRC566-800 60" x 72" x 72" 180 85" x 114" x 90" 800°F 4,000 3 60 400,000 8" ±0.3% ±10°F 50 35 4,870 lbs
WRC586-500 60" x 96" x 72" 240 81" x 134" x 87" 500°F 4,200 3 45 350,000 6" ±0.3% ±6°F 40 20 4,195 lbs
WRC586-650 60" x 96" x 72" 240 83" x 136" x 88" 650°F 4,200 3 60 400,000 7" ±0.3% ±8°F 45 30 5,010 lbs
WRC586-800 60" x 96" x 72" 240 87" x 138" x 90" 800°F 5,000 5 80 600,000 8" ±0.3% ±10°F 45 35 6,035 lbs
WRC666-500 72" x 72" x 78" 234 93" x 110" x 93" 500°F 4,200 3 45 350,000 6" ±0.3% ±6°F 40 25 4,190 lbs
WRC666-650 72" x 72" x 78" 234 95" x 112" x 94" 650°F 4,200 3 60 400,000 7" ±0.3% ±8°F 45 30 5,005 lbs
WRC666-800 72" x 72" x 78" 234 99" x 114" x 96" 800°F 5,000 5 80 600,000 8" ±0.3% ±10°F 45 35 6,025 lbs
WRC686-500 72" x 96" x 78" 312 97" x 134" x 94" 500°F 6,000 5 60 400,000 6" ±0.3% ±6°F 35 25 6,465 lbs
WRC686-650 72" x 96" x 78" 312 99" x 136" x 95" 650°F 6,000 5 80 600,000 7" ±0.3% ±8°F 40 25 6,680 lbs
WRC686-800 72" x 96" x 78" 312 101" x 146" x 98" 800°F 7,800 5 100 700,000 8" ±0.3% ±10°F 45 30 8,125 lbs
WRC6106-500 72" x 120" x 78" 390 97" x 166" x 95" 500°F 7,800 5 80 600,000 6" ±0.3% ±6°F 30 20 7,455 lbs
WRC6106-650 72" x 120" x 78" 390 99" x 168" x 96" 650°F 7,800 5 100 700,000 7" ±0.3% ±8°F 35 25 7,870 lbs
WRC6106-800 72" x 120" x 78" 390 104" x 170" x 98" 800°F 10,000 7 ½ 120 800,000 8" ±0.3% ±10°F 40 35 9,300 lbs
WRC6126-500 72" x 144" x 78" 468 100" x 191" x 95" 500°F 10,000 7 ½ 80 600,000 6" ±0.3% ±6°F 40 25 8,630 lbs
WRC6126-650 72" x 144" x 78" 468 102" x 192" x 96" 650°F 10,000 7 ½ 100 700,000 7" ±0.3% ±8°F 45 30 9,045 lbs
WRC6126-800 72" x 144" x 78" 468 104" x 194" x 100" 800°F 12,500 10 120 800,000 8" ±0.3% ±10°F 50 40 10,475 lbs
WRC688-500 72" x 96" x 96" 384 96" x 143" x 112" 500°F 7,800 5 80 600,000 6" ±0.3% ±6°F 30 20 7,445 lbs
WRC688-650 72" x 96" x 96" 384 98" x 144" x 113" 650°F 7,800 5 100 700,000 7" ±0.3% ±8°F 35 25 7,760 lbs
WRC787-500 84" x 96" x 84" 392 108" x 143" x 99" 500°F 7,800 5 80 600,000 6" ±0.3% ±6°F 30 20 8,140 lbs
WRC787-650 84" x 96" x 84" 392 110" x 144" x 100" 650°F 7,800 5 100 700,000 7" ±0.3% ±8°F 35 25 8,455 lbs
WRC7107-500 84" x 120" x 84" 490 112" x 167" x 101" 500°F 10,000 7 ½ 80 600,000 6" ±0.3% ±6°F 40 25 9,330 lbs
WRC7107-650 84" x 120" x 84" 490 114" x 168" x 102" 650°F 10,000 7 ½ 100 700,000 7" ±0.3% ±8°F 45 30 9,745 lbs
WRC7127-500 84" x 144" x 84" 588 112" x 191" x 102" 500°F 12,500 10 100 700,000 6" ±0.3% ±6°F 40 25 10,505 lbs
WRC7127-650 84" x 144" x 84" 588 114" x 192" x 103" 650°F 12,500 10 140 1,200,000 7" ±0.3% ±8°F 40 25 10,920 lbs
WRC8108-500 96" x 120" x 96" 640 124" x 167" x 113" 500°F 12,500 10 120 800,000 6" ±0.3% ±6°F 35 25 10,725 lbs
WRC8108-650 96" x 120" x 96" 640 126" x 168" x 114" 650°F 12,500 10 160 1,200,000 7" ±0.3% ±8°F 35 25 11,240 lbs
WRC8128-500 96" x 144" x 96" 768 132" x 205" x 115" 500°F 17,500 15 140 1,200,000 6" ±0.3% ±6°F 35 25 12,415 lbs
WRC8128-650 96" x 144" x 96" 768 134" x 207" x 117" 650°F 17,500 15 180 1,200,000 7" ±0.3% ±8°F 35 25 12,835 lbs

* Outside Dimensions

  • All Models: Control panel overhang 9″ right side.
  • Blower motor overhang 19″ rear through 5 HP, 26″ up to 10 HP and 30″ at 15 HP.
  • Gas Models: Burner overhang 15″ right side.
  • 325 CFM exhauster except 650 CFM at 1,200,000 BTU/HR.

† Operating Characteristics

Walk-In Ovens Combination Air Flow Rear Mounted Heat Chamber Model Details:

Specifications for Walk-In Ovens Combination Air Flow Rear Mounted Heat Chamber

MODEL WRC446-500
MAXIMUM OPERATING TEMP 500°F
AIR FLOW Bottom to Top, Forced Convection, Side to Side
CONTROL ACCURACY ±0.3%
OVEN UNIFORMITY ±6°F
RISE TIME - ELECTRIC 40 mins
RISE TIME - GAS 20mins
WORKS SPACE DIMENSIONS (WxDxH) 48" x 48" x 72"
SHELVES INCLUDED
NUMBER OF SHELVES MAX
SHELF CAPACITY Not Available
MAX LOAD CAPACITY Not Available
DOORS Manual
LOADING METHOD Cart or Truck, Floor
APPROXIMATE SHIP WEIGHT 3055 lbs
OUTSIDE DIMENSIONS (WxDxH) 67" x 86" x 87"
product-image
product-image
product-image
product-image

Standard Features for Walk-In Ovens Combination Air Flow Rear Mounted Heat Chamber

Certifications
  • UL Listed Control Panel
  • Meets the Requirements of the Following Standards:
    • NFPA 86 (Standard for Ovens and Furnaces)
    • NFPA 70 (National Electric Code)
    • FM (Factory Mutual)
    • OSHA
  • Caution:
    • When processing combustible material fire protection should be considered
    • Processing flammable solvents or vapors requires forced exhaust to provide safety ventilation. For more information see Class A Solvent Processing page at this website
Safety Equipment
  • Adjustable manual reset excess temperature interlock to turn off heat on malfunction of main temperature controller
  • Recirculating blower air flow safety switch to turn off heat on loss of recirculated air flow
  • Electrical interlock shuts off heat if power to recirculating blower is interrupted
  • Electric Heat Includes
    • Separate heating element control contactors to turn off heat on malfunction of main control contactors
  • Gas Heat Includes
    • Modulating burner for 1000 BTU per cubic foot natural gas at 6” water column pressure – propane available. Inlet 1” NPT (1-¼ “ NPT above 350,000 BTU/hr input)
    • Automatic pre-ignition purge period to clear accumulated gas or fumes
    • Push button electric ignition
    • Microprocessor based electronic flame safeguard protection to continuously monitor flame and close gas valves if flame is not present
    • 325 CFM (650 CFM at 1,200,000 BUT/hr input) powered forced exhauster to provide combustion venting
    • Exhauster air flow safety switch to close gas valves on loss of venting
    • Two pilot valves to guarantee gas flow to pilot can be stopped
    • High and Low gas pressure switches to confirm safe operating pressure range
    • Two main burner safety shut off valves with valve seat position indicator to assure gas flow to main burner can be stopped
    • Proof of closure switch on one main valve to prevent igniting pilot unless main valve is closed
    • Leak test station at each pilot and main burner valve to allow testing for leakage through valve
Controls
  • Digital temperature controller
  • Motor control push buttons and on-off heat switch
  • LED pilot lights
  • 5 kA short circuit current rating (SCCR)
Construction
  • Choice of
    • Electric or Gas heat
    • 208 volt, 230 volt or 460 volt, 3-phase, 60 HZ – other input power available
  • All welded construction
  • Durable, electrically isolated, Incoloy tubular heating elements
  • Heat source located in heat chamber to prevent radiant heating
  • High pressure carbon steel recirculating blower
  • Full coverage supply and return duct work with adjustable opposed louvers
  • Adjustable fresh air intake and 6” diameter exhaust outlet damper
  • Insulated with 6 lbs per cubic foot density rockwool insulation
  • Aluminized steel interior with carbon steel structural members
  • Flat plate floor (12 gauge aluminized steel to 6’ wide work space, ¼” steel plate on wider work spaces) with door sill angle for doors to seal against
  • Door sill angle can be eliminated and doors provided with drag seals
  • Provisions for installation of insulated floor and truck wheel guide tracks
  • Aluminized steel exterior with Trilite Green enamel finish
  • Brushed stainless steel control panel face
  • Exceptionally heavy duty doors, hinges and door frame with explosion venting latches
  • Expansion joints on inner doors avoid bowing
  • Fiberglass door gasket with stainless steel spring insert
  • Fully assembled and factory tested for temperature uniformity
  • 1 year limited warranty

Modifications & Accessories for Walk-In Ovens Combination Air Flow Rear Mounted Heat Chamber

  • Walk-In Oven Loading Truck Shelf

    Oven accessory adding a carbon steel shelf for walk-in oven shelf truck. Size and capacity determined by oven model.

    Add to quote
    Add to quote
  • Flat Bed Truck

    Oven accessory adding a Flat Bed Truck with subway grate surface and removable push handle.

    Scroll down to the bottom of the page for additional details.

    Add to quote
    Add to quote
  • Walk-In Oven Shelf Truck

    Oven accessory adding a shelf loading truck for walk-in oven. Need to specify desired capacity and material.

    Scroll down to the bottom of the page for additional details.



    Add to quote
    Add to quote
  • Insulated Floor

    Oven modification adding a insulated floor to minimize heat loss and improve temperature uniformity. Floor thickness determined by oven model.

    Add to quote
    Add to quote
  • Truck Tracks

    Oven modification adding floor level Truck Tracks. Truck tracks to allow truck loading through doorsill and prevent damage to sidewall louvers.

    Add to quote
    Add to quote
  • Insulated Floor With Recessed Truck Tracks

    Oven modification adding an insulated floor with recessed truck tracks, used where oven will be loaded at factory level.

    Add to quote
    Add to quote
  • Insulated Floor With Surface Truck Tracks

    Oven modification adding a insulated floor with surface truck tracks, used where oven will be recessed into factory floor or loaded with an external ramp.

    Add to quote
    Add to quote
  • Programmable Temperature Controller

    Oven modification adding a programmable Temperature Controller. Microprocessor based, digital indicating, thermocouple actuated, in lieu of standard controller.

    -Program Parameters: 40 profiles of up to 50 steps each, a real-time clock with battery backup to allow starting profile at any time of day

    -Digital Display, 4.3” color touch screen

    -Accuracy, ±0.1% of span plus 1 degree display error

    -Connectivity, Relay output for alarm or other notification, two (2) USB ports, Ethernet compatible

    Also Available:

    -Up to four (4) control channels of temperature, relative humidity or vacuum

    -Monitor up to16 sensors

    -Math and logic functions

    -Digital inputs and outputs

    -Data logging

    -Graphic Trending

    Add to quote
    Add to quote
  • Digital Timing Temperature Controller

    Modification adding a Digital Timing Temperature Controller. Microprocessor based, incorporates 99 hour 59 minute timer, starts timing temperature reaches set point and shuts down oven at end of set time.

    • Digital Display, two LED, alphanumeric, 4 digit displays; 0.875″ high for temperature display and 0.500″ high for set point display
    • Accuracy, ±0.1% of span plus 1 degree display error
    Add to quote
    Add to quote

Custom Ovens

Custom ovens and furnaces tailored to your specific worksite and requirements

No two worksites are alike. That means your oven or furnace needs to be built to your exact specifications. Sometimes that will be an oven in our catalog. Otherwise, we will specially design for your application.

Custom Oven and furnace Info

custom-ovens-furnaces-product-detail

Industrial Ovens & Furnaces Made to Order

Your business has specific needs. We’ll make them work. We’ll build your custom oven or furnace to last for the long haul. Let’s talk.
