Analog Control Laboratory Ovens

Product Image
Product Image
Product Image
Product Image

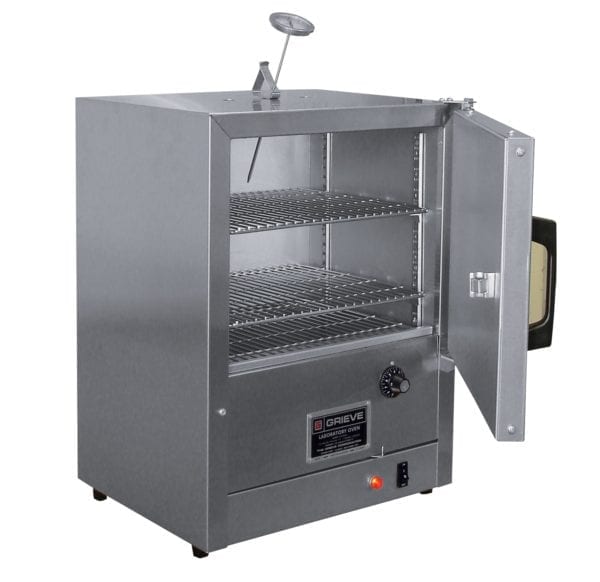

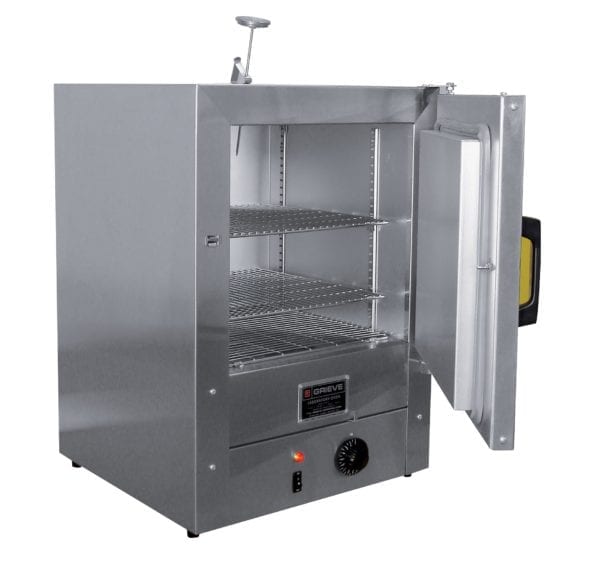

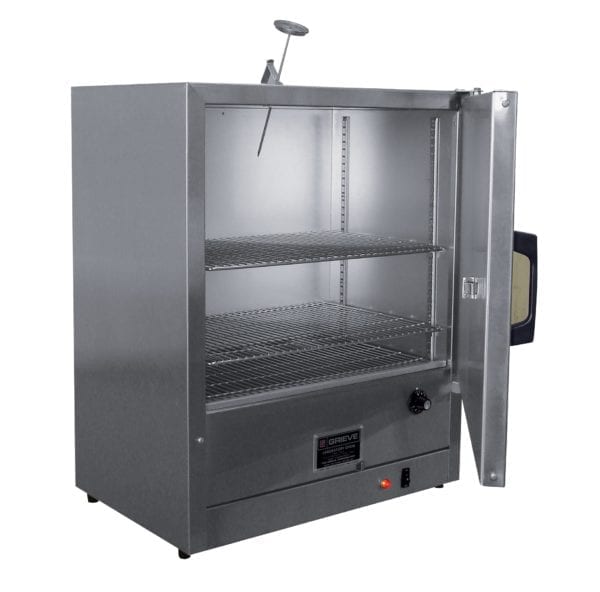

Analog Control Laboratory Ovens

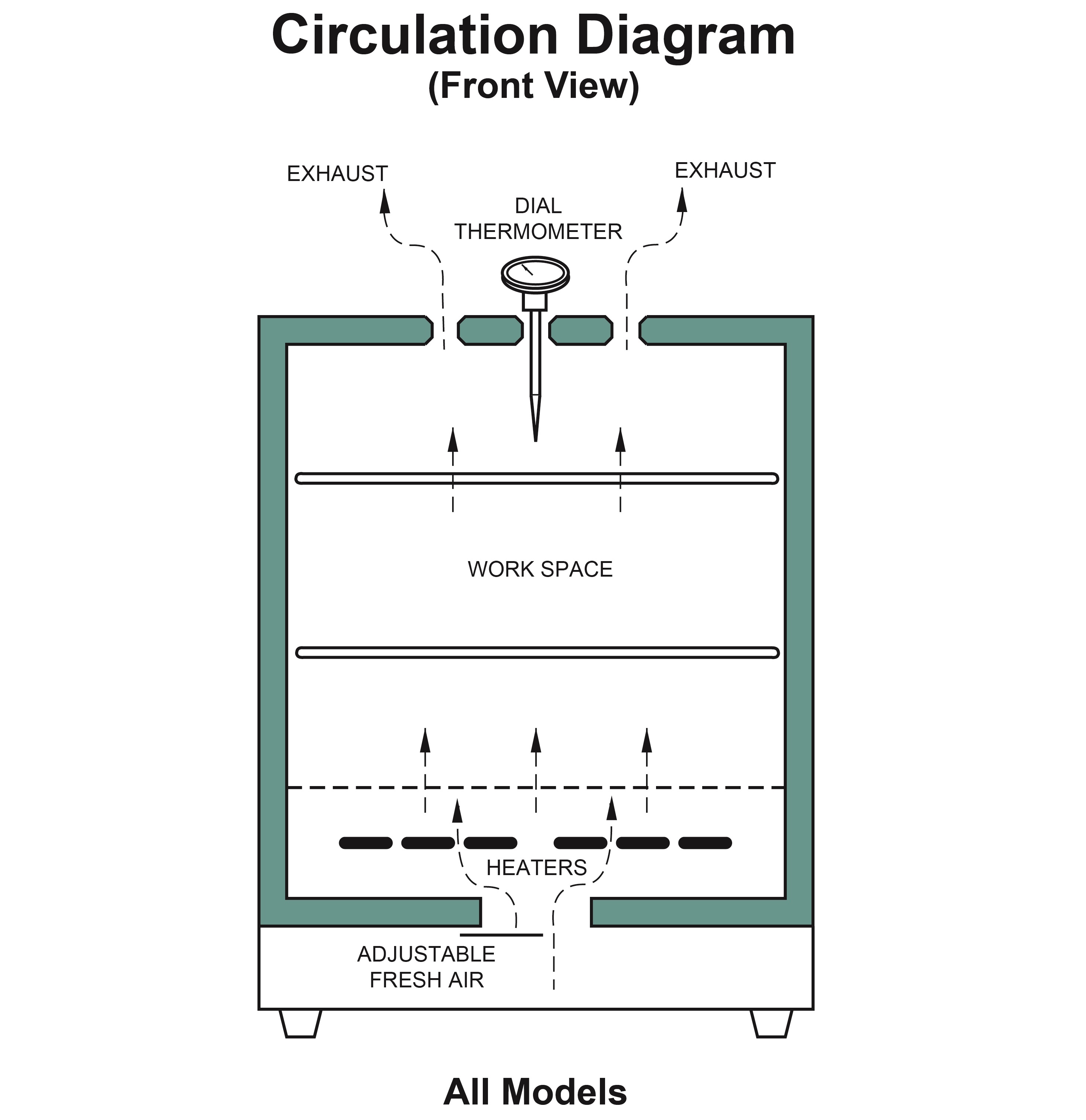

Ovens for sample drying, baking, annealing, conditioning, sterilizing, evaporating and dehydrating.Heat is transferred from the bottom up through the oven chamber by natural convection and exits through vents in the oven top.

Analog Control Laboratory Ovens Model Specifications:

Not for use with flammable solvents, vapors, or gases. Other models available for these applications.

Model Workspace Outside Dimensions*(WxDxH) Max Temp Blower Heat Input Insulation Thickness Operating Characteristics† Approx Shipping Weight
Dimensions(WxDxH) VolumeCu Ft CFM HP ElectricKW GasBTU/HR Control Accuracy Temperature Uniformity Rise Time (Electric) Rise Time (Gas)
LO-201C 12" x 10" x 10" 0.7 14" x 12" x 19" 392°F Not Available NA 0.8 Not Rated 1" Not Rated Not Rated Not Rated Not Available 41 lbs
LR-271C 13" x 13" x 13" 1.3 17" x 17.4" x 24" 518°F Not Available NA 0.8 Not Rated 2" Not Rated Not Rated Not Rated Not Available 72 lbs
LW-201C 18" x 12" x 16" 2 20" x 14" x 25" 392°F Not Available NA 1.6 Not Rated 1" Not Rated Not Rated Not Rated Not Available 72 lbs

Analog Control Laboratory Ovens Model Details:

Quote

Specifications for Analog Control Laboratory Ovens

MODEL LW-201C
MAXIMUM OPERATING TEMP 392°F
AIR FLOW Bottom to Top, Gravity Convection
CONTROL ACCURACY Not Rated
OVEN UNIFORMITY Not Rated
RISE TIME - ELECTRIC Not Rated
RISE TIME - GAS Not Rated
WORKS SPACE DIMENSIONS (WxDxH) 18" x 12" x 16"
SHELVES INCLUDED 2
NUMBER OF SHELVES MAX 2
SHELF CAPACITY 15
MAX LOAD CAPACITY Not Available
DOORS Manual
LOADING METHOD Shelf
APPROXIMATE SHIP WEIGHT 72 lbs
OUTSIDE DIMENSIONS (WxDxH) 20" x 14" x 25"
Product Image
Product Image
Product Image
Product Image
Product Image

Standard Features for Analog Control Laboratory Ovens

Certifications
  • Meets the Requirements of the Following Standards:
    • NFPA 86 (Standard for Ovens and Furnaces)
    • NFPA 70 (National Electric Code)
    • OSHA
  • Caution:
    • When processing combustible material fire protection should be considered
    • Not for use with flammable solvents or vapors. Other models available for these applications. For more information see Class A Solvent Processing page at this website
Safety Equipment
  • Models LO and LW: Thermal cutoff disconnects power to heaters if maximum oven temperature is exceeded
  • Model LR:Hydraulic manual reset excess temperature interlock disconnects power to heaters if maximum oven temperature is exceeded
Controls
  • Models LO and LW: Bimetal thermostat temperature controller
  • Model LR: Hydraulic temperature controller
  • Red pilot light to indicate heater operation
  • Top mounted dial thermometer
  • On-Off switch
Construction
  • 120 or 240 volt 1-phase, 50-60 HZ; 240 volt models can be operated on 208 volts with heat input reduced by 20%
  • 3-wire cord and plug on 120 volt models
  • Durable, electrically isolated, Incoloy tubular heating elements
  • Gravity convection
  • Adjustable inlet damper at bottom of oven provides control of amount of fresh air entering oven
  • Shelf supports adjustable on ½” centers
  • Insulated with 6 lbs per cubic foot density rockwool insulation
  • Aluminized steel interior
  • Brushed stainless steel exterior
  • Fully assembled and factory tested
  • 1 year limited warranty

Modifications & Accessories for Analog Control Laboratory Ovens

  • Laboratory Oven Shelf

    Oven accessory adding a Laboratory Oven Shelf. Maximum distributed load of 15 lbs. Includes four support clips.

    Add to quote
  • Export Crating

    Modification adding a Export Crating. Full wooden crate constructed with EU certified lumber, wooden decked skid, vacuum packing with MIL-131-B Class 1 vapor barrier and desiccant, internal blocking and bracing, external steel strapping, and stenciled export markings with shipment destination.

    Add to quote
