Large Capacity Bench Ovens

Low cost, large capacity Bench ovens for shelf processing at temperatures to 400°F. Designed to handle a wide variety of applications such as baking, curing, drying and preheating.

Large Capacity Bench Ovens Model Specifications:

CAUTION:  Ovens processing combustible material are required by National Fire Protection Association 86 Standard for Ovens and Furnaces (NFPA 86) to have a fire suppression system.  If flammable solvents or vapors are present in an oven, OSHA requires conformance with NFPA 86 Class A Oven requirements.  A powered forced exhauster and other non-standard safety equipment must be added.  See Class A Oven Equipment for Solvent Processing resource page, reference our FAQs or contact us us for more information.

Model Workspace Outside Dimensions*(WxDxH) Max Temp Blower Heat Input Insulation Thickness Operating Characteristics† Approx Shipping Weight
Dimensions(WxDxH) VolumeCu Ft CFM HP ElectricKW GasBTU/HR Control Accuracy Temperature Uniformity Rise Time (Electric) Rise Time (Gas)
323 36" x 21" x 36" 15.8 40" x 28" x 47" 400°F 400 4.4 Not Rated 2" ±0.5% ±8°F 18 Not Available 600 lbs
333 36" x 36" x 36" 27 40" x 43" x 47" 400°F 400 6.6 Not Rated 2" ±0.5% ±8°F 18 Not Available 750 lbs
343 36" x 48" x 36" 36 40" x 55" x 47" 400°F 400 6.6 Not Rated 2" ±0.5% ±8°F 22 Not Available 850 lbs

* Outside Dimensions

  • Blower motor extends 11″ above. Control panel overhang 9″ right side.
  • Model 323 has two (2) heating elements which result in an open delta heater connection on 3-phase electrical service.
  • Click here for 323, 333, 343 dimensions

† Operating Characteristics

Large Capacity Bench Ovens Model Details:

Specifications for Large Capacity Bench Ovens

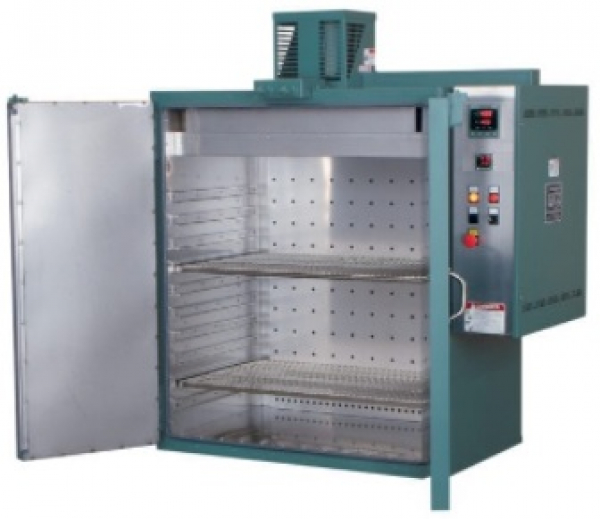

MODEL 323
MAXIMUM OPERATING TEMP 400°F

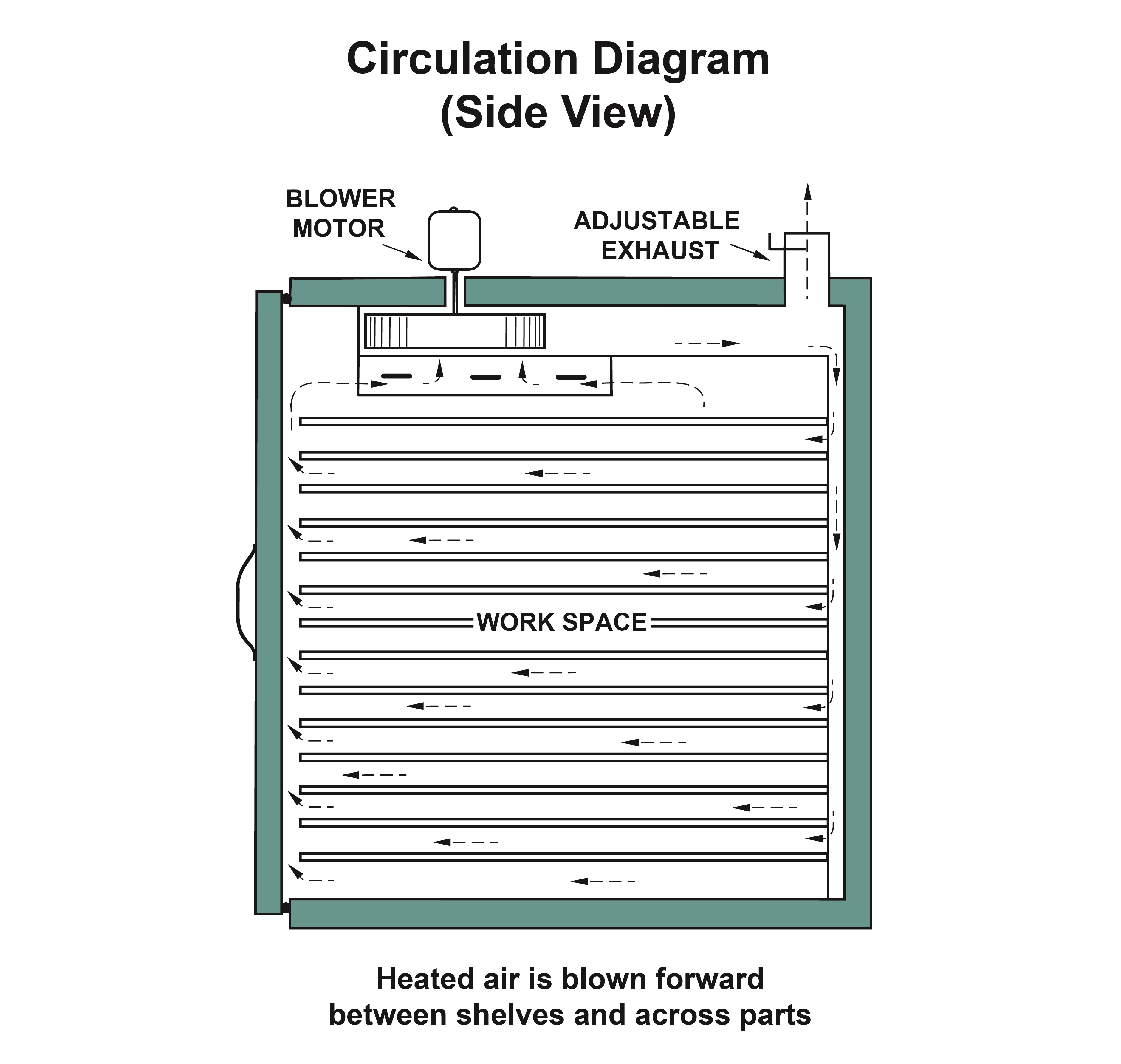

AIR FLOW Forced Convection, Front to Back
CONTROL ACCURACY ±0.5%
OVEN UNIFORMITY ±8°F
RISE TIME - ELECTRIC 18 mins
RISE TIME - GAS Not Rated
WORKS SPACE DIMENSIONS (WxDxH) 36" x 21" x 36"
SHELVES INCLUDED 2
NUMBER OF SHELVES MAX 10
SHELF CAPACITY 50
MAX LOAD CAPACITY 200
DOORS Manual
LOADING METHOD Shelf
APPROXIMATE SHIP WEIGHT 600 lbs
OUTSIDE DIMENSIONS (WxDxH) 40" x 28" x 47"
product-image
product-image
product-image
product-image
product-image

Standard Features for Large Capacity Bench Ovens

Certifications
  • UL Listed Control Panel
  • Meets the Requirements of the Following Standards:
    • NFPA 86 (Standard for Ovens and Furnaces)
    • NFPA 70 (National Electric Code)
    • FM (Factory Mutual)
    • OSHA
  • Caution:
    • When processing combustible material fire protection should be considered
    • Processing flammable solvents or vapors requires forced exhaust to provide safety ventilation. For more information see Class A Solvent Processing page at this website
Safety Equipment
  • Adjustable manual reset excess temperature interlock to turn off heat on malfunction of main temperature controller
  • Separate heating element control contactors to turn off heat on malfunction of main control contactors
  • Recirculating blower air flow safety switch to turn off heat on loss of recirculated air flow
  • Electrical interlock shuts off heat if power to recirculating blower is interrupted
Controls
  • Digital indicating temperature controller
  • Motor control push buttons and on-off heat switch
  • LED pilot lights
  • 5 kA short circuit current rating (SCCR)
Construction
  • 208 volt, 230 volt or 460 volt, 1 or 3-phase, 60 HZ – other input power available
  • All welded construction
  • Durable, electrically isolated, Incoloy tubular heating elements
  • Heating elements located in heat chamber to prevent radiant heating
  • High pressure carbon steel recirculating blower
  • Adjustable fresh air intake and 4” diameter exhaust outlet damper
  • Channel shelf supports prevent shelves tipping
  • Insulated with 2” of 6 lbs per cubic foot density rockwool insulation
  • 304 stainless steel interior with plated hardware
  • Aluminized steel exterior with Trilite Green enamel finish
  • Brushed stainless steel control panel face
  • Heavy duty doors with explosion venting latches
  • Silicone rubber door gasket
  • Fully assembled and factory tested
  • 1 year limited warranty

Modifications & Accessories for Large Capacity Bench Ovens

  • Nickel Plated Carbon Steel Shelf

    Oven accessory adding a nickel plated carbon steel shelf with maximum distributed load of either 50lbs 100lbs, or 200lbs depending on the oven model.

    Add to quote
    Add to quote
  • Stainless Steel Shelf

    Oven accessory adding a Stainless Steel Shelf with maximum distributed load of either 50lbs, 100lbs or 200lbs depending on oven model.

    Add to quote
    Add to quote

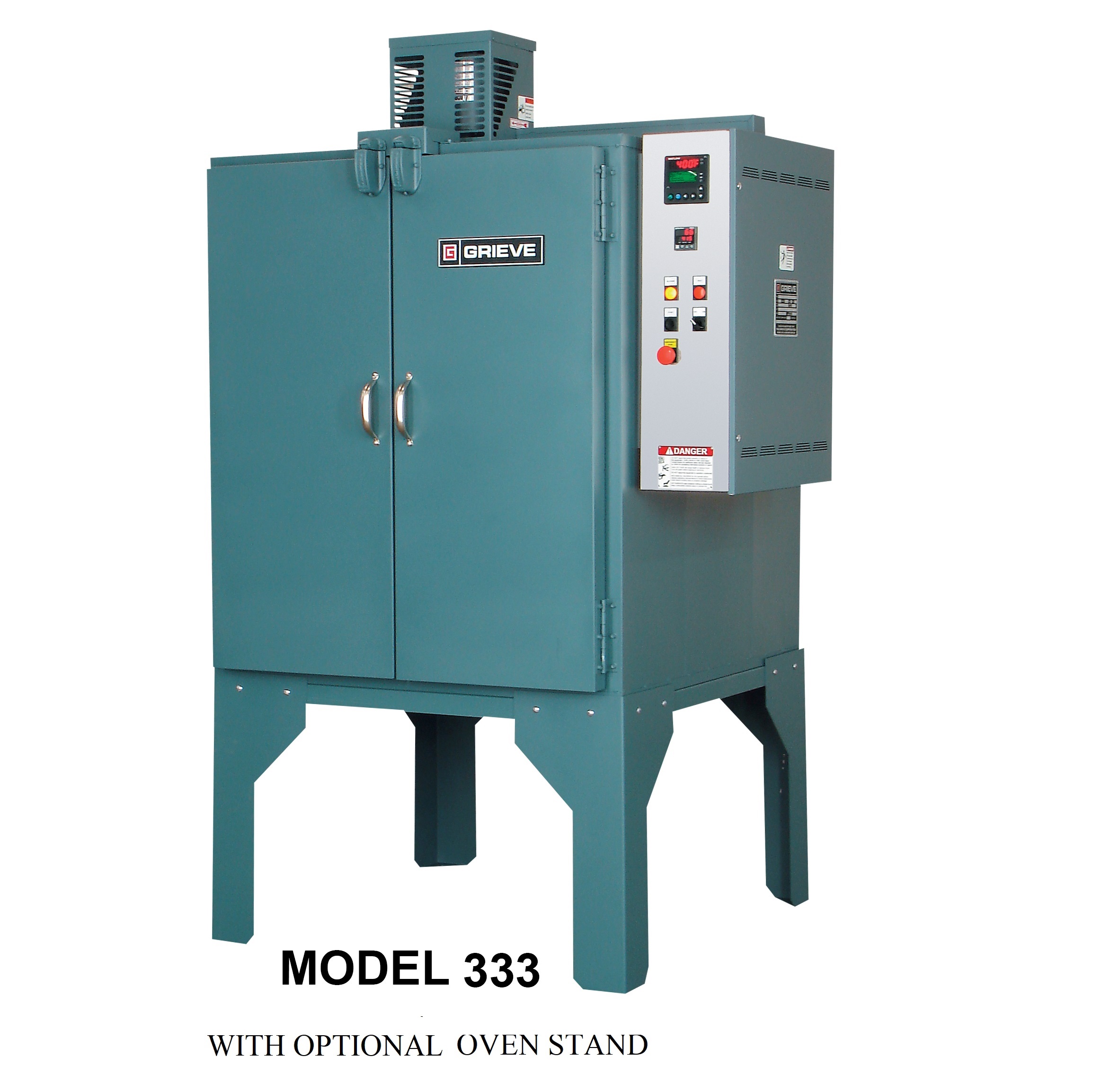

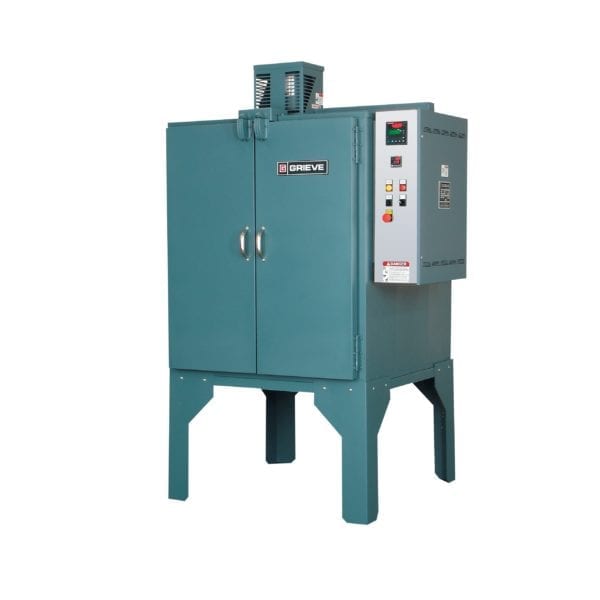

  • Large Capacity Bench Oven Stand

    Oven modification adding a large capacity bench Oven Stand. Holds oven at convenient 24″ working height.

    Add to quote
    Add to quote
  • Programmable Temperature Controller

    Oven modification adding a programmable Temperature Controller. Microprocessor based, digital indicating, thermocouple actuated, in lieu of standard controller.

    -Program Parameters: 40 profiles of up to 50 steps each, a real-time clock with battery backup to allow starting profile at any time of day

    -Digital Display, 4.3” color touch screen

    -Accuracy, ±0.1% of span plus 1 degree display error

    -Connectivity, Relay output for alarm or other notification, two (2) USB ports, Ethernet compatible

    Also Available:

    -Up to four (4) control channels of temperature, relative humidity or vacuum

    -Monitor up to16 sensors

    -Math and logic functions

    -Digital inputs and outputs

    -Data logging

    -Graphic Trending

    Add to quote
    Add to quote
  • Digital Timing Temperature Controller

    Modification adding a Digital Timing Temperature Controller. Microprocessor based, incorporates 99 hour 59 minute timer, starts timing temperature reaches set point and shuts down oven at end of set time.

    • Digital Display, two LED, alphanumeric, 4 digit displays; 0.875″ high for temperature display and 0.500″ high for set point display
    • Accuracy, ±0.1% of span plus 1 degree display error
    Add to quote
    Add to quote
  • Recording Thermometer

    Accessory adding a Recording Thermometer. Thermocouple actuated.

    • Record: 10″ diameter circular chart 24 hour chart rotation
    • Digital Display: 0.56″ high, LED, alphanumeric, 4 digit display; LED status display
    • Accuracy: ±0.25%of span plus 1 degree display error
    Add to quote
    Add to quote
  • SCR Power Controller

    Electrical modification adding an SCR Power Controller. Features:

    •Silicon controlled rectifier power controllers are completely solid state industrial controllers that ensure precise proportioning of electric power to the heating elements.

    •Oven temperature is maintained smoothly and evenly over the entire temperature range of the unit.

    •SCR power controllers minimize maintenance, as there are no moving parts or electrical contacts to wear out.

    •Heating element fatigue is reduced since the elements do not cool between releases of electric power.

    •Zero voltage firing, including the first one half cycle of voltage, minimizes radio frequency and electromagnetic interference.

    •Transient voltage suppressor networks are included, and the units are provided with protective fusing.

    Add to quote
    Add to quote
  • Digital Shut Down Timer

    Accessory adding a Digital Shut Down Timer. Shuts down oven, selectable range, continuous “hold” feature.

    Add to quote
    Add to quote
  • Install Customer Supplied Temperature Controller

    Modification installing a customer supplied temperature controller in lieu of standard controller.

    Add to quote
