Floor Level Cabinet Ovens

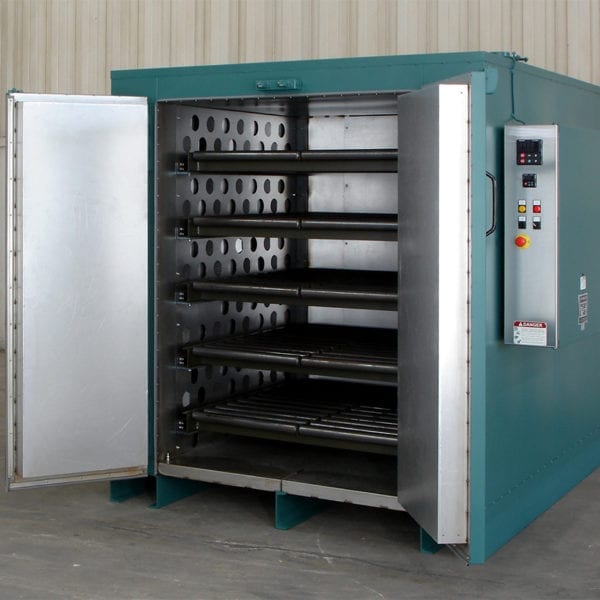

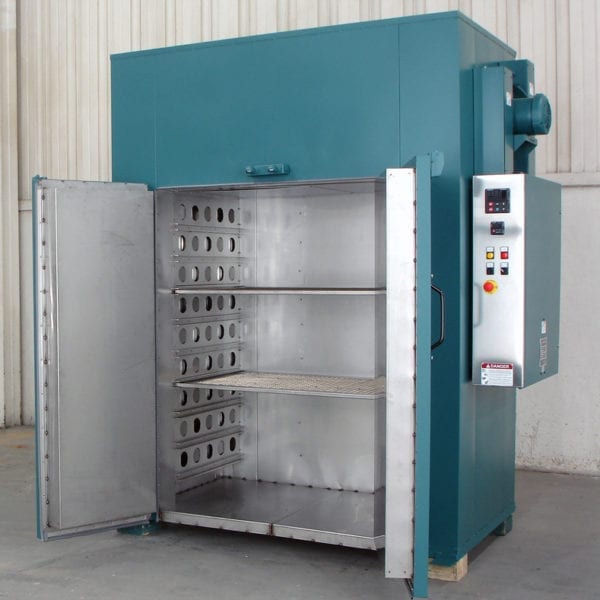

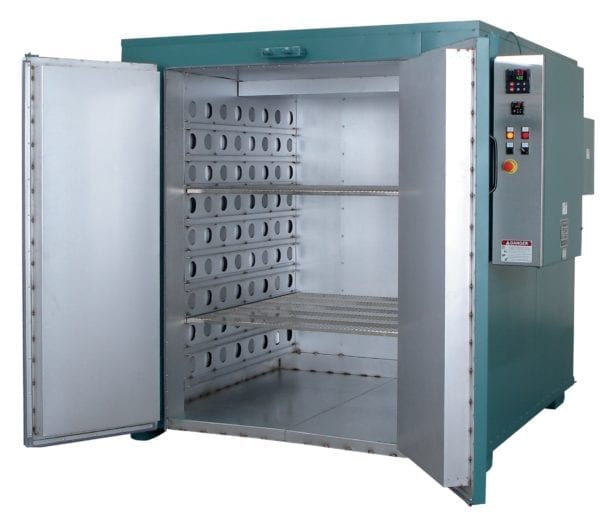

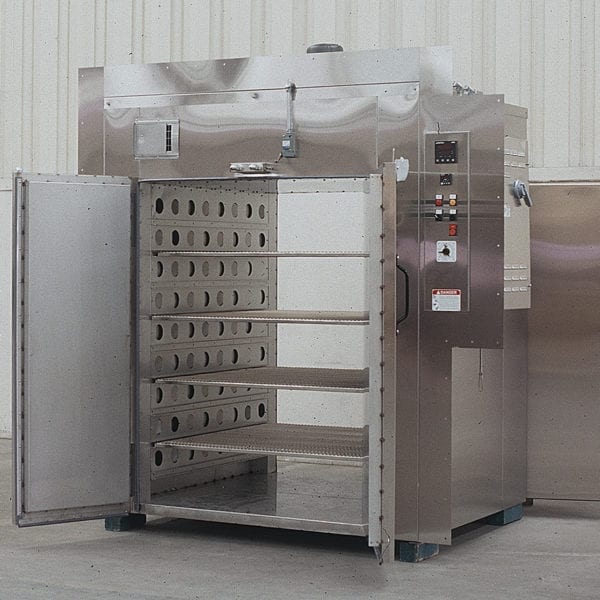

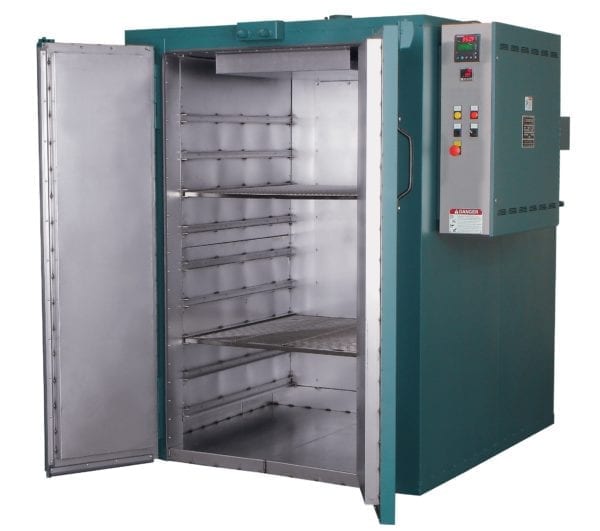

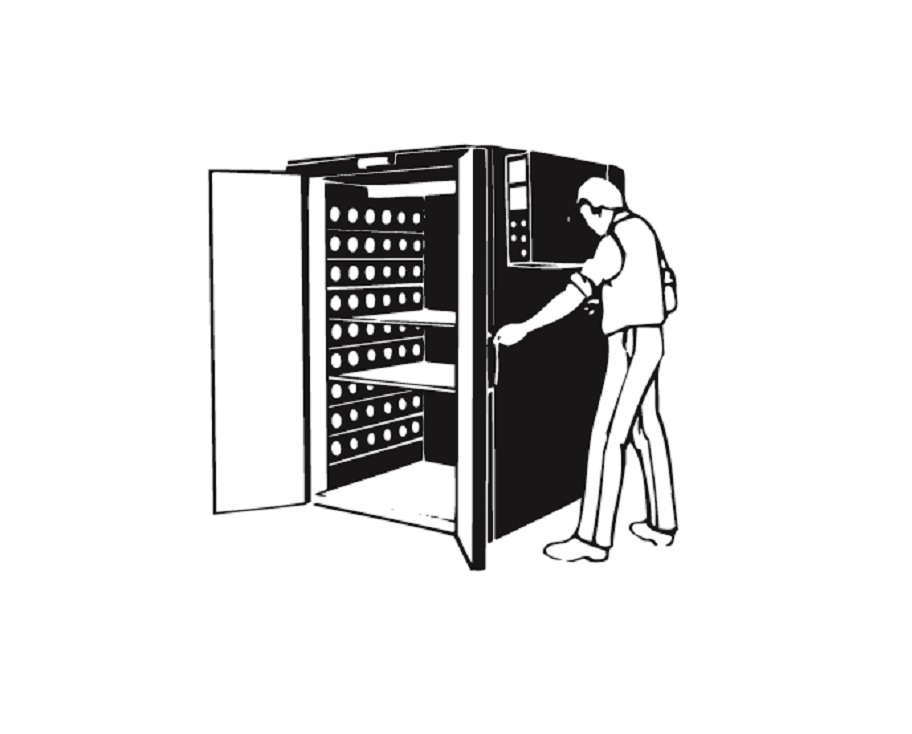

Large, low cost, shelf processing ovens for bulky or numerous parts at temperatures to 550°F. Work can be placed directly on reinforced floor or shelf loaded. Work space starts at floor level for convenient loading of large items and easy access to top shelves.

Floor Level Cabinet Ovens Model Specifications:

CAUTION:  Ovens processing combustible material are required by National Fire Protection Association 86 Standard for Ovens and Furnaces (NFPA 86) to have a fire suppression system.  If flammable solvents or vapors are present in an oven, OSHA requires conformance with NFPA 86 Class A Oven requirements.  A powered forced exhauster and other non-standard safety equipment must be added.  See Class A Oven Equipment for Solvent Processing resource page, reference our FAQs or our contact us us for more information.

Model Workspace Outside Dimensions*(WxDxH) Max Temp Blower Heat Input Insulation Thickness Operating Characteristics† Approx Shipping Weight
Dimensions(WxDxH) VolumeCu Ft CFM HP ElectricKW GasBTU/HR Control Accuracy Temperature Uniformity Rise Time (Electric) Rise Time (Gas)
CAH-400 36" x 36" x 60" 45 56" x 67" x 74" 400°F 1,600 1 ½ 12 132,000 6" ±0.3% ±4°F 20 10 2,330 lbs
CAH-550 36" x 36" x 60" 45 56" x 67" x 74" 550°F 1,600 1 ½ 18 200,000 6" ±0.3% ±6°F 34 15 2,440 lbs
CBH-400 48" x 48" x 60" 80 68" x 79" x 74" 400°F 2,000 2 18 132,000 6" ±0.3% ±4°F 18 10 2,800 lbs

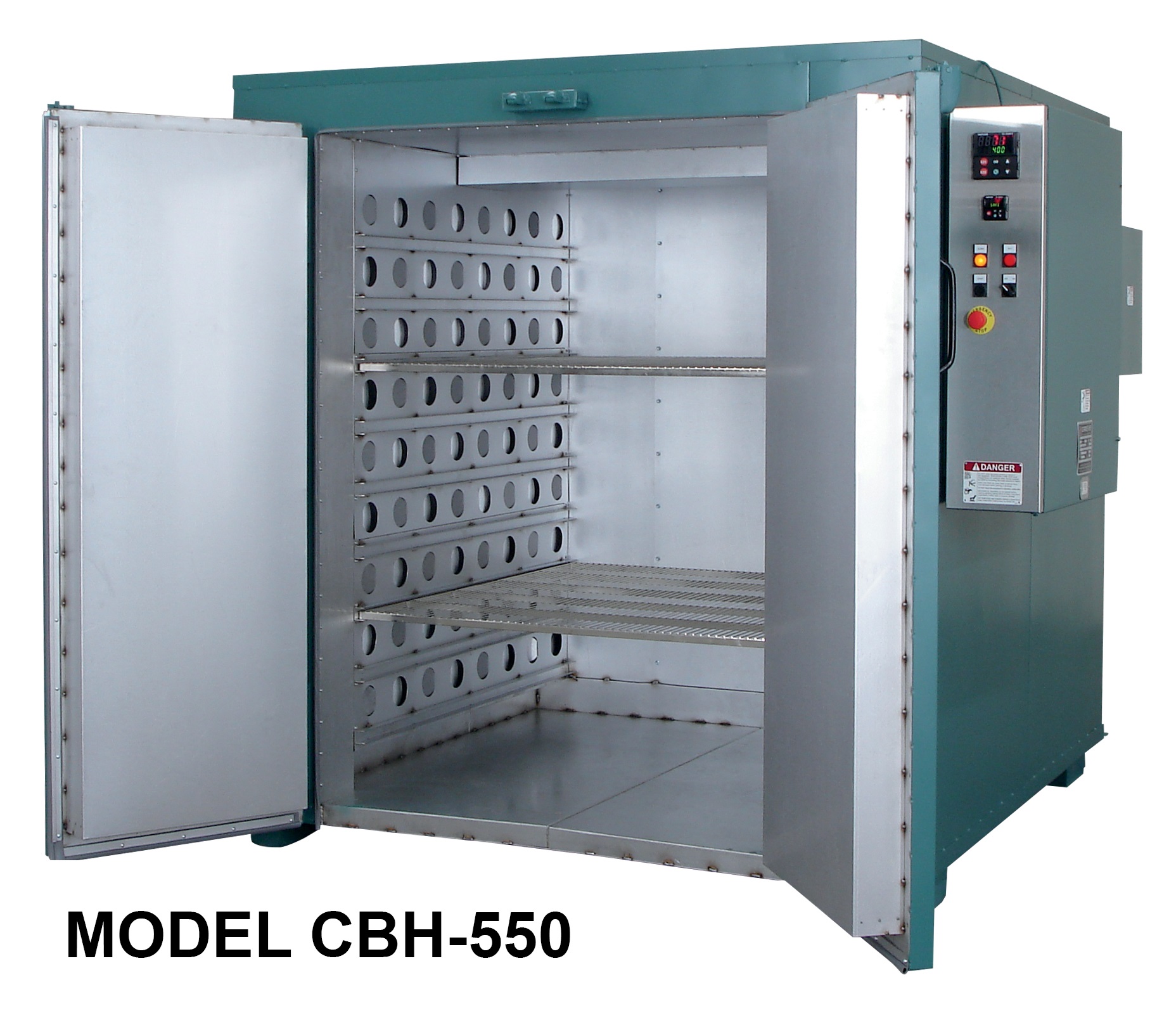

CBH-550 48" x 48" x 60" 80 68" x 79" x 74" 550°F 2,000 2 24 200,000 6" ±0.3% ±6°F 29 15 2,940 lbs
CAV-400 36" x 36" x 60" 45 56" x 67" x 74" 400°F 1,000 ¾ 12 132,000 6" ±0.3% ±4°F 20 10 2,330 lbs
CAV-550 36" x 36" x 60" 45 56" x 67" x 74" 550°F 1,000 ¾ 18 200,000 6" ±0.3% ±6°F 34 15 2,460 lbs
CBV-400 48" x 48" x 60" 80 68" x 79" x 74" 400°F 1,200 1 18 132,000 6" ±0.3% ±4°F 18 10 2,650 lbs
CBV-550 48" x 48" x 60" 80 68" x 79" x 74" 550°F 1,200 1 24 200,000 6" ±0.3% ±6°F 29 15 2,700 lbs

† Operating Characteristics

  • Accuracy as percent of controller span.
  • Uniformity at 50°F below maximum temperature.
  • Rise Time in minutes to 50°F below maximum temperature.
  • Tests run with empty oven and minimum exhaust.
  • Performance will vary with load and application.

Floor Level Cabinet Ovens Model Details:

Quote

Specifications for Floor Level Cabinet Ovens

MODEL CAH-400
MAXIMUM OPERATING TEMP 400°F

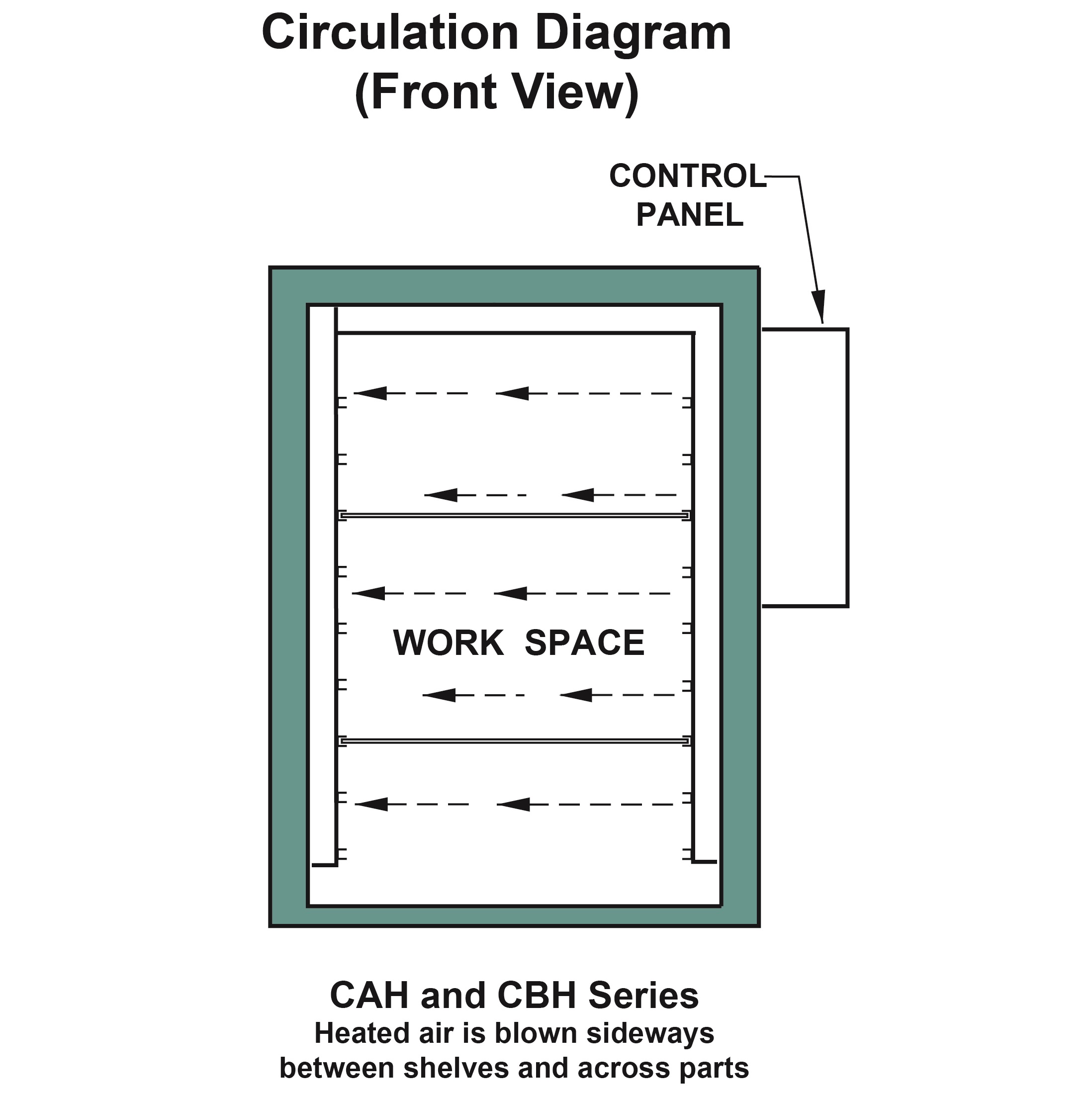

AIR FLOW Forced Convection, Side to Side
CONTROL ACCURACY ±0.3%
OVEN UNIFORMITY ±4°F
RISE TIME - ELECTRIC 20 mins
RISE TIME - GAS 10mins
WORKS SPACE DIMENSIONS (WxDxH) 36" x 36" x 60"
SHELVES INCLUDED 2
NUMBER OF SHELVES MAX 9
SHELF CAPACITY 100
MAX LOAD CAPACITY Not Available
DOORS Manual
LOADING METHOD Shelf
APPROXIMATE SHIP WEIGHT 2330 lbs
OUTSIDE DIMENSIONS (WxDxH) 56" x 67" x 74"
Product Image
Product Image
Product Image
Product Image

Standard Features for Floor Level Cabinet Ovens

Certifications
  • UL Listed Control Panel
  • Meets the Requirements of the Following Standards:
    • NFPA 86 (Standard for Ovens and Furnaces)
    • NFPA 70 (National Electric Code)
    • FM (Factory Mutual)
    • OSHA
  • Caution:
    • When processing combustible material fire protection should be considered
    • Processing flammable solvents or vapors requires forced exhaust to provide safety ventilation. For more information see Class A Solvent Processing page at this website
Safety Equipment
  • Adjustable manual reset excess temperature interlock to turn off heat on malfunction of main temperature controller
  • Recirculating blower air flow safety switch to turn off heat on loss of recirculated air flow
  • Electrical interlock shuts off heat if power to recirculating blower is interrupted
  • Electric Heat Includes
    • Separate heating element control contactors to turn off heat on malfunction of main control contactors

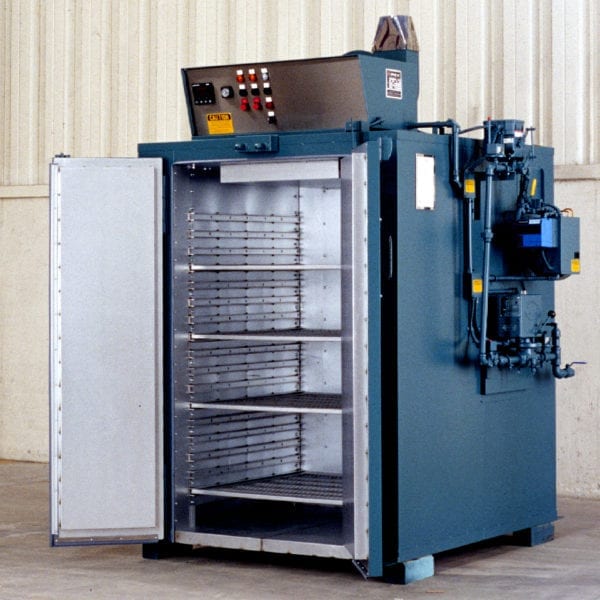

  • Gas Heat Includes
    • Modulating burner for 1000 BTU per cubic foot natural gas at 6” water column pressure – propane available. Inlet 1” NPT (1-¼ “ NPT above 350,000 BTU/hr input)
    • Automatic pre-ignition purge period to clear accumulated gas or fumes
    • Push button electric ignition
    • Microprocessor based electronic flame safeguard protection to continuously monitor flame and close gas valves if flame is not present
    • 325 CFM powered forced exhauster to provide combustion venting
    • Exhauster air flow safety switch to close gas valves on loss of venting
    • Two pilot valves to guarantee gas flow to pilot can be stopped
    • High and Low gas pressure switches to confirm safe operating pressure range
    • Two main burner safety shut off valves with valve seat position indicator to assure gas flow to main burner can be stopped
    • Proof of closure switch on one main valve to prevent igniting pilot unless main valve is closed
    • Leak test station at each pilot and main burner valve to allow testing for leakage through valve
Controls
  • Digital temperature controller
  • Motor control push buttons and on-off heat switch
  • LED pilot lights
  • 5 kA short circuit current rating (SCCR)
Construction
  • Choice of
    • Recirculating air flow patterns – Horizontal or Vertical air flow
    • Electric or Gas heat
    • 208 volt, 230 volt or 460 volt, 3-phase, 60 HZ – other input power available
  • All welded construction
  • Durable, electrically isolated, Incoloy tubular heating elements
  • Heat source located in heat chamber to prevent radiant heating
  • High pressure carbon steel recirculating blower
  • Adjustable fresh air intake and 4” diameter (6” on Gas Heat) exhaust outlet damper
  • Channel shelf supports prevent shelves tipping
  • Insulated with 10 lbs per cubic foot density rockwool insulation
  • Aluminized steel interior
  • Aluminized steel exterior with Trilite Green enamel finish
  • Brushed stainless steel control panel face
  • Heavy duty doors with explosion venting latches
  • Slip flashing at doorway to allow inner oven to expand without affecting door sealing
  • Fully insulated 2 inch thick floor reinforced for 500 pounds distributed loading
  • Silicone rubber door gasket
  • Full coverage supply and return duct work with adjustable opposed louvers on horizontal air flow models
  • Fully assembled and factory tested for temperature uniformity
  • 1 year limited warranty

Modifications & Accessories for Floor Level Cabinet Ovens

  • Nickel Plated Carbon Steel Shelf

    Oven accessory adding a nickel plated carbon steel shelf with maximum distributed load of either 50lbs 100lbs, or 200lbs depending on the oven model.

    Add to quote
  • Stainless Steel Shelf

    Oven accessory adding a Stainless Steel Shelf with maximum distributed load of either 50lbs, 100lbs or 200lbs depending on oven model.

    Add to quote

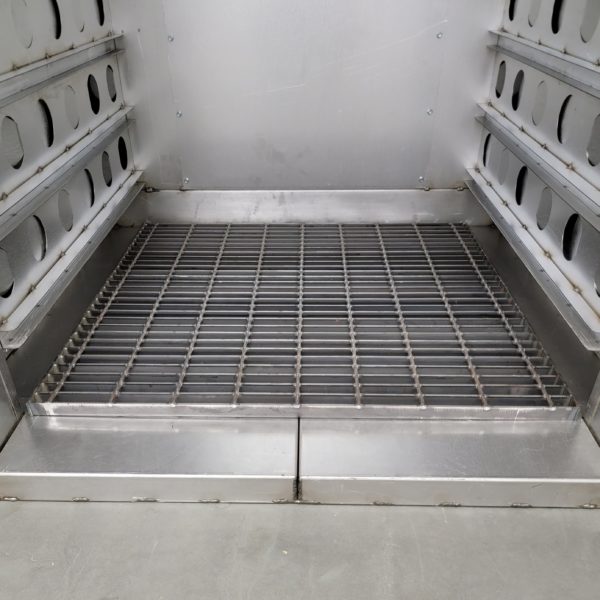

  • Reinforced Workspace Bottom

    Oven modification adding a reinforced workspace bottom of 1500 lbs capacity at subway grate reduces available work space height by 1″.

    Add to quote
  • Programmable Temperature Controller

    Oven modification adding a programmable Temperature Controller. Microprocessor based, digital indicating, thermocouple actuated, in lieu of standard controller.

    Add to quote
  • Digital Timing Temperature Controller

    Modification adding a Digital Timing Temperature Controller. Microprocessor based, incorporates 99 hour 59 minute timer, starts timing temperature reaches set point and shuts down oven at end of set time.

    Add to quote
  • Recording Thermometer

    Accessory adding a Recording Thermometer. Thermocouple actuated, 10″ diameter circular chart, 24 hour chart rotation.

    Add to quote
  • SCR Power Controller

    Electrical modification adding an SCR Power Controller. Silicon controlled rectifier power controller in lieu of mechanical heating element contactors, minimizes maintenance, reduces heating element fatigue.

    Add to quote
  • Digital Shut Down Timer

    Accessory adding a Digital Shut Down Timer. Shuts down oven, selectable range, continuous “hold” feature.

    Add to quote
  • Install Customer Supplied Temperature Controller

    Modification installing a customer supplied temperature controller in lieu of standard controller.

    Add to quote
