Walk In Ovens

Walk-In Ovens Combination Air Flow Rear Mounted Heat Chamber

These ovens produce heated air that is provided from full coverage supply duct work at each side of the work space and sweeps upward through the load to a return duct at the top of the work space. Ideal for large parts placed directly on oven floor or loaded on a truck. Rear heat chamber for easy handling, low profile equipment.

• MAX OPERATING TEMP: 800 ºF
• MAX WORKSPACE (WxDxH): 96" x 144" x 96"

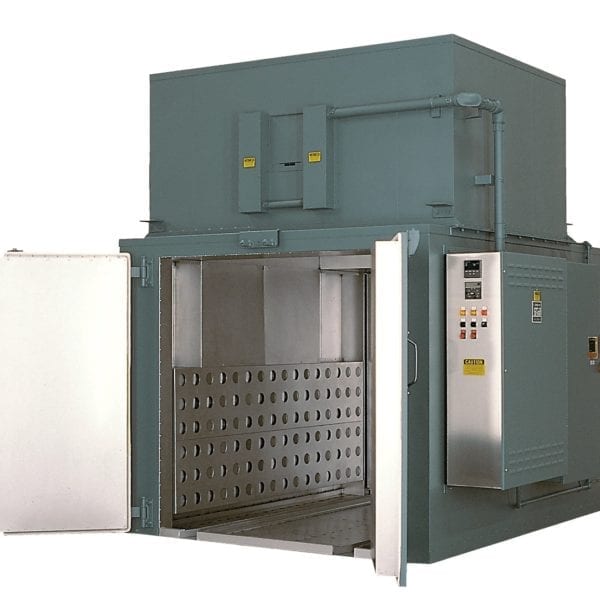

Walk-In Ovens Combination Air Flow Top Mounted Heat Chamber

These ovens produce heated air that is provided from full coverage supply duct work at each side of the work space and sweeps upward through the load to a return duct at the top of the work space. Ideal for large parts placed directly on oven floor or loaded on a truck. Available with removable top mounted heat chamber, fully assembled to oven and tested. Heat chamber match marked and removed for shipping or installation clearance.

• MAX OPERATING TEMP: 800 ºF
• MAX WORKSPACE (WxDxH): 96" x 144" x 96"

Walk-In Ovens Horizontal Air Flow Rear Mounted Heat Chamber

These ovens produce heated air blown horizontally across the work space between full coverage duct work. For shelf truck loading applications with densely loaded shelves, solid bottom trays or flat sheets where heated air can only pass sideways above and below each level. Rear heat chamber for easy handling, low profile equipment.

• MAX OPERATING TEMP: 800 ºF
• MAX WORKSPACE (WxDxH): 96" x 144" x 96"

Walk-In Ovens Horizontal Air Flow Top Mounted Heat Chamber

These ovens produce heated air blown horizontally across the work space between full coverage duct work. For shelf truck loading applications with densely loaded shelves, solid bottom trays or flat sheets where heated air can only pass sideways above and below each level. Available with removable top mounted heat chamber, fully assembled to oven and tested. Heat chamber match marked and removed for shipping or installation clearance.

• MAX OPERATING TEMP: 800 ºF
• MAX WORKSPACE (WxDxH): 96" x 144" x 96"

High Temperature Walk-In Ovens

For annealing, sintering, precipitation hardening, burn-off or any other high temperature processing of large or numerous parts. Constructed with an isolated inner oven to eliminate heat transfer and leakage at seams commonly found in standard panel construction. Designed and constructed for long, hard, continuous use with the temperature uniformity required for consistent results at elevated temperatures.

• MAX OPERATING TEMP: 1200 ºF
• MAX WORKSPACE (WxDxH): 72" x 120" x 72"
