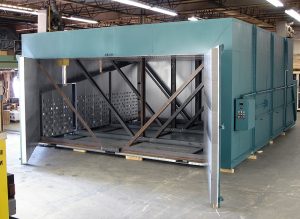

No. 1019 is a 500° electrically-heated walk-in batch oven from Grieve, currently used for curing coatings onto large discs at the customer’s facility. Workspace dimensions on this oven measure 18′ W x 18′ D x 10′ H. 260KW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a total of 66,000 CFM generated by two 30-HP recirculating blowers provides combination airflow to the workload.
This Grieve walk-in oven features 6″ insulated walls, aluminized steel exterior and interior, 2″ thick insulated flooring with built-in oven truck wheel guide tracks and motorized dampers on the intake and exhaust for accelerated cooling of the heat chamber. The oven was sectioned into four pieces for shipping convenience.
All safety equipment required for handling flammable solvents, including explosion-venting door hardware, is provided on No.1019,
Controls on this jumbo walk-in batch oven include an SCR power controller.
