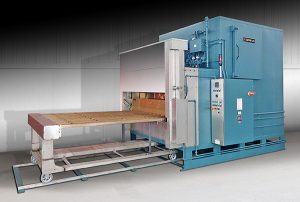

No. 1046 is a 750°F (399°C), gas-fired cabinet oven from Grieve, currently used for baking radiator cores. Workspace dimensions of this oven measure 80” wide x 88” deep x 18” high. 800,000 BTU/HR are installed in a modulating natural gas burner, while a 12500 CFM, 10 HP recirculating blower provides vertical upward airflow to the workload.
This Grieve cabinet oven has a 76” wide x 76” long, 750 lbs. capacity pneumatic operated rollout shelf with an insulated plug to seal doorway opening. Features include 8” insulated walls, top-mounted heat chamber and 16-gauge, Type 316, 2B finish stainless steel interior with continuously welded seams.
Additional features include a 16-gauge, 304 stainless steel oven front with a pneumatically operated vertical lift door, an exhaust hood incorporated into the vertical lift door guard and a 1500 CFM powered forced exhauster with motorized damper to increase exhaust as the door is opened. The oven is equipped with safety equipment required by IRI, FM and National Fire Protection Association Standard 86 for operation with flammable solvents.
Controls on the No. 1046 include a digital programming temperature controller, manual reset excess temperature controller with separate contactors, and a recirculating blower airflow safety switch.
