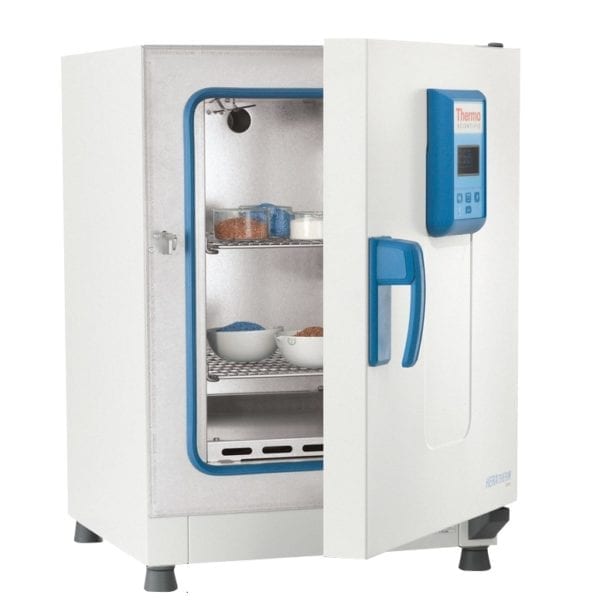

Digital Control Laboratory Ovens
Digital Control Laboratory Ovens
Bench ovens designed for excellent uniformity and temperature control, rapid rise and recovery times.
Digital Control Laboratory Ovens Model Specifications:
Not for use with flammable solvents, vapors, or gases. Other models available for these applications.
| Model | Workspace | Outside Dimensions*(WxDxH) | Max Temp | Blower | Heat Input | Insulation Thickness | Operating Characteristics† | Approx Shipping Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions(WxDxH) | VolumeCu Ft | CFM | HP | ElectricKW | GasBTU/HR | Control Accuracy | Temperature Uniformity | Rise Time (Electric) | Rise Time (Gas) | |||||
| GSA-250 | 13" x 16" x 19" | 2.3 | 21" x 22" x 28" | 482°F | Not Available | NA | 1.8 | Not Rated | 2" | ±0.3% | ± 9°F | 25 | Not Available | 121 lbs |
| GSB-250 | 17" x 16" x 23" | 3.6 | 25" x 22" x 32" | 482°F | Not Available | NA | 3.1 | Not Rated | 2" | ±0.3% | ± 9°F | 25 | Not Available | 143 lbs |
| GSC-250 | 17" x 23" x 27" | 6.1 | 25" x 29" x 36" | 482°F | Not Available | NA | 3.1 | Not Rated | 2" | ±0.3% | ± 9°F | 25 | Not Available | 190 lbs |
| FSA-250 | 14" x 14" x 20" | 2.3 | 21" x 22" x 28" | 482°F | Not Available | NA | 1.4 | Not Rated | 2" | ±0.3% | ± 7°F | 20 | Not Available | 121 lbs |
| FSB-250 | 18" x 14" x 24" | 3.5 | 25" x 22" x 32" | 482°F | Not Available | NA | 3.1 | Not Rated | 2" | ±0.3% | ± 7°F | 20 | Not Available | 148 lbs |
| FSC-250 | 18" x 21" x 28" | 6.1 | 25" x 29" x 36" | 482°F | Not Available | NA | 3.1 | Not Rated | 2" | ±0.3% | ± 7°F | 20 | Not Available | 190 lbs |

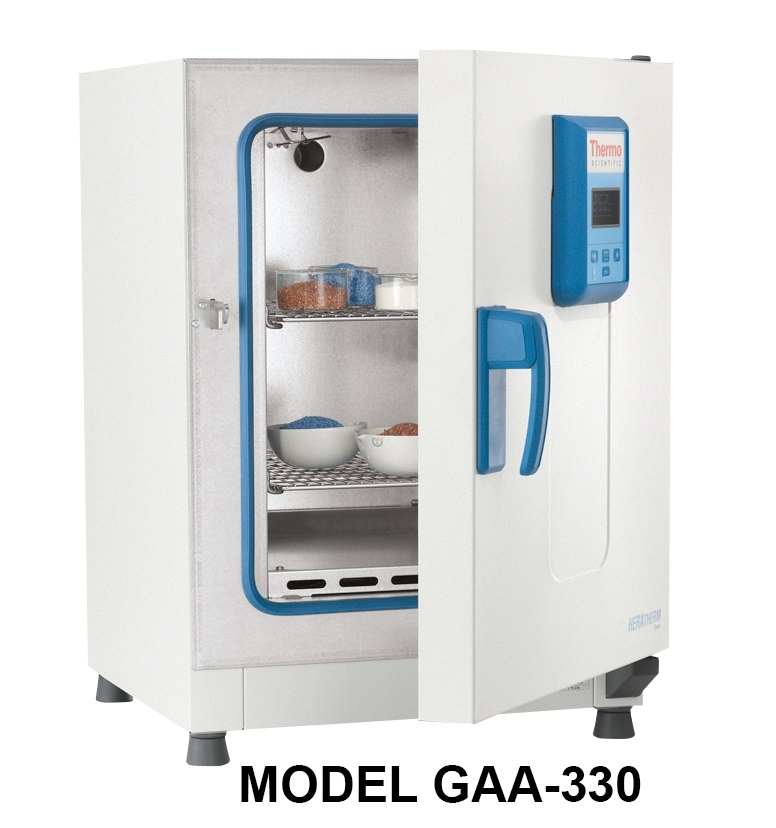

| GAA-330 | 13" x 15" x 19" | 2.1 | 21" x 22" x 28" | 626°F | Not Available | NA | 1.8 | Not Rated | 2" | ±0.3% | ± 7°F | 25 | Not Available | 123 lbs |
| GAB-330 | 17" x 15" x 23" | 3.4 | 25" x 22" x 32" | 626°F | Not Available | NA | 3.1 | Not Rated | 2" | ±0.3% | ± 7°F | 25 | Not Available | 152 lbs |
| GAC-330 | 17" x 22" x 27" | 5.8 | 25" x 29" x 36" | 626°F | Not Available | NA | 3.1 | Not Rated | 2" | ±0.3% | ± 7°F | 25 | Not Available | 190 lbs |
| FAA-330 | 14" x 13" x 20" | 2.1 | 21" x 28" x 28" | 626°F | Not Available | NA | 1.4 | Not Rated | 2" | ±0.3% | ± 4°F | 20 | Not Available | 126 lbs |
| FAB-330 | 18" x 13" x 24" | 3.3 | 25" x 22" x 32" | 626°F | Not Available | NA | 3.1 | Not Rated | 2" | ±0.3% | ± 4°F | 20 | Not Available | 143 lbs |
| FAC-330 | 18" x 20" x 28" | 5.8 | 25" x 29" x 36" | 626°F | Not Available | NA | 3.1 | Not Rated | 2" | ±0.3% | ± 4°F | 20 | Not Available | 190 lbs |
† Operating Characteristics
- Uniformity and temperature stability measured at 302°F.
- Rise Time measured from 77°F to 302°F.
- Tests run with empty oven and minimum exhaust.
- Performance will vary with load and application.
Specifications for Digital Control Laboratory Ovens
| MODEL | GSA-250 |
|---|---|
| MAXIMUM OPERATING TEMP | 482°F |
| AIR FLOW | Bottom to Top, Gravity Convection |
| CONTROL ACCURACY | ±0.3% |
| OVEN UNIFORMITY | ± 9°F |
| RISE TIME - ELECTRIC | 25 mins |
| RISE TIME - GAS | Not Rated |
| WORKS SPACE DIMENSIONS (WxDxH) | 13" x 16" x 19" |
| SHELVES INCLUDED | 2 |
| NUMBER OF SHELVES MAX | 13 |
| SHELF CAPACITY | 55 |
| MAX LOAD CAPACITY | Not Available |
| DOORS | Manual |
| LOADING METHOD | Shelf |
| APPROXIMATE SHIP WEIGHT | 121 lbs |
| OUTSIDE DIMENSIONS (WxDxH) | 21" x 22" x 28" |
Standard Features for Digital Control Laboratory Ovens
Certifications
- Meets the Requirements of the Following Standards:
- NFPA 70 (National Electric Code)
- CSA 120 volt and 208-240 volt models
- CE 230 volt models
- OSHA
- Caution:
- When processing combustible material fire protection should be considered
- Not for use with flammable solvents or vapors. Other models available for these applications. For more information see Class A Solvent Processing page at this website
Safety Equipment
Controls
- Digital temperature controller with built in timer and RS-232 interface
- Standard Control System
- Manual fresh air damper
- Exhaust port that can be used for test leads
- Without heat input from load, can operate as low as ambient +10°C
- Advanced Control System
- Start/Stop timer weekly or daily
- Electrically controlled fresh air damper
- Access port for test leads
- 2 selectable blower speeds
- Programmable dwell times, ramp times are not adjustable
- Contacts for remote alarm
- Connection for optional sample temperature sensor
- Boost function for accelerated heat-up
Construction
- Gravity Convection
- Heated air rises from at bottom of work space
- Exhaust vents at top of work space
- Forced Convection
- Heated air is gently forced into work space from outlets at each side of the front of the work space
- Air returns at the center of the work space, is reheated and recirculated
- Exhaust through a vent in the top of the work space
- 120 or 208-240 volt, 1-phase, 60 HZ; 230 volt, 1-phase, 50-60 HZ
- Durable, electrically isolated, Incoloy tubular heating elements
- Recirculating blower
- Adjustable fresh air intake and exhaust vents

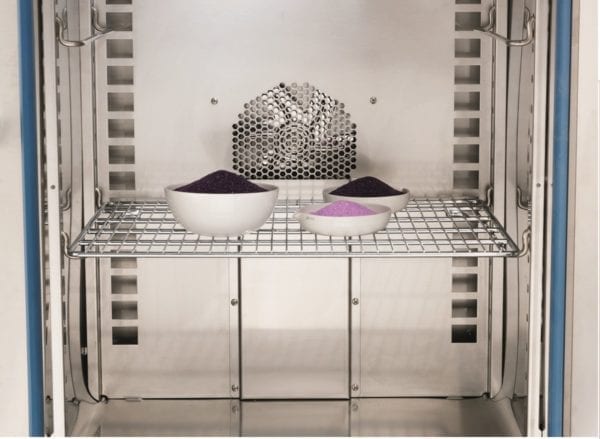

- Flexible shelving system
- Insulated with 10 lbs per cubic foot density rockwool insulation
- Stainless steel interior with plated hardware
- Rounded interior corners for easy cleaning
- Powder coated steel exterior
- Easy access doors open 180°
- Fully assembled and factory tested
- 2 year limited warranty
Modifications & Accessories for Digital Control Laboratory Ovens
-
Digital Bench Oven Shelf
Oven modification adding a stainless steel shelf with maximum distributed load of 55 lbs.
-
Export Crating
Modification adding a Export Crating. Full wooden crate constructed with EU certified lumber, wooden decked skid, vacuum packing with MIL-131-B Class 1 vapor barrier and desiccant, internal blocking and bracing, external steel strapping, and stenciled export markings with shipment destination.
