650°F Universal Oven from Grieve

August 23, 2019

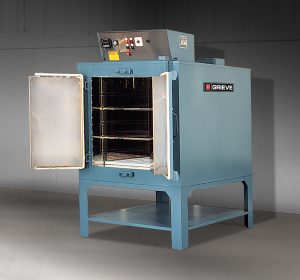

No. 841 is a Model AB-650 universal oven from Grieve. Maximum operating temperature 650°F (343°C). Workspace dimensions of this oven measure 36” wide x 36” deep x 36” high. 9 KW are installed in Incoloy sheathed tubular heating elements, while a 600 CFM, 1/2-HP recirculating blower provides universal airflow to the workload.

This Grieve universal oven features 6” insulated walls, aluminized steel exterior, Type 430 stainless steel interior, and integral leg stand to hold workspace at convenient height. The workspace floor is reinforced for 500 lbs. loading at removable subway grate.

Controls on the No. 841 include a digital programming temperature controller, manual reset excess temperature controller with separate contactors, and recirculating blower airflow safety switch.
