500°F ELECTRIC INERT ATMOSPHERE OVEN FROM GRIEVE

August 17, 2013

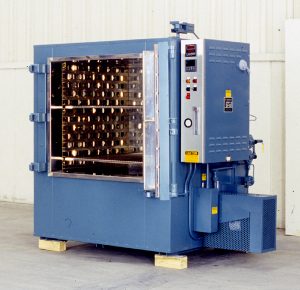

No. 930 is an electrically-heated, 500°F (260°C) inert atmosphere cabinet oven from Grieve, currently used for liquid flow solder masking under a nitrogen atmosphere. Workspace dimensions measure 38″ wide x 38″ deep x 38″ high. 30 kW are installed in Incoloy sheathed tubular heating elements, while a 1500 CFM, 1-1/2 HP recirculating blower provides horizontal airflow to the load.

This Grieve inert atmosphere cabinet oven features 4″ insulated walls, aluminized steel exterior, Type 430 stainless steel interior, and an automatic door switch to shut off heaters and blower when the door is opened.

Special inert atmosphere construction features include a pressure regulator, flowmeter, pressure gauge, inner oven walls sealing directly against a 1/2″ thick silicone rubber door seal, air jacket on the inner oven for cooling, blower shaft seal, positive latching door hardware, adjustable offset door hinges, outlet with pressure relief, interior seams welded gas-tight, and all oven wall penetrations equipped with compression fittings to maintain atmosphere integrity.

No. 930 also includes a digital programming temperature controller, manual reset excess temperature controller with separate contactors, recirculating blower airflow safety switch and fused disconnect switch.
